- Powered by NVIDIA® Jetson Orin™ NX Super up to 157 / 117 TOPS
- Business Card Size (90mmx55mm)

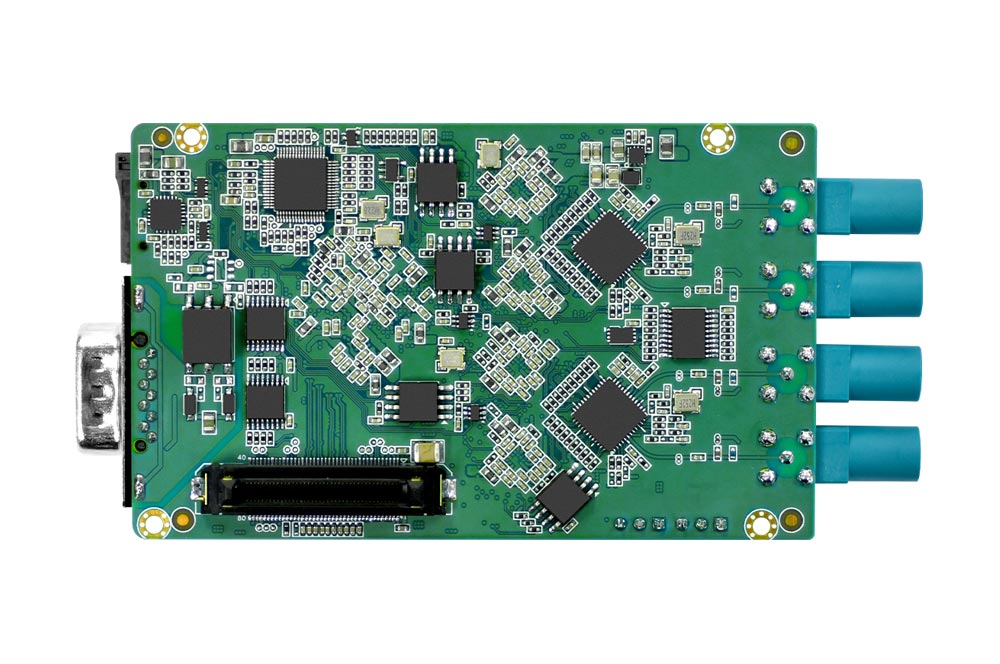

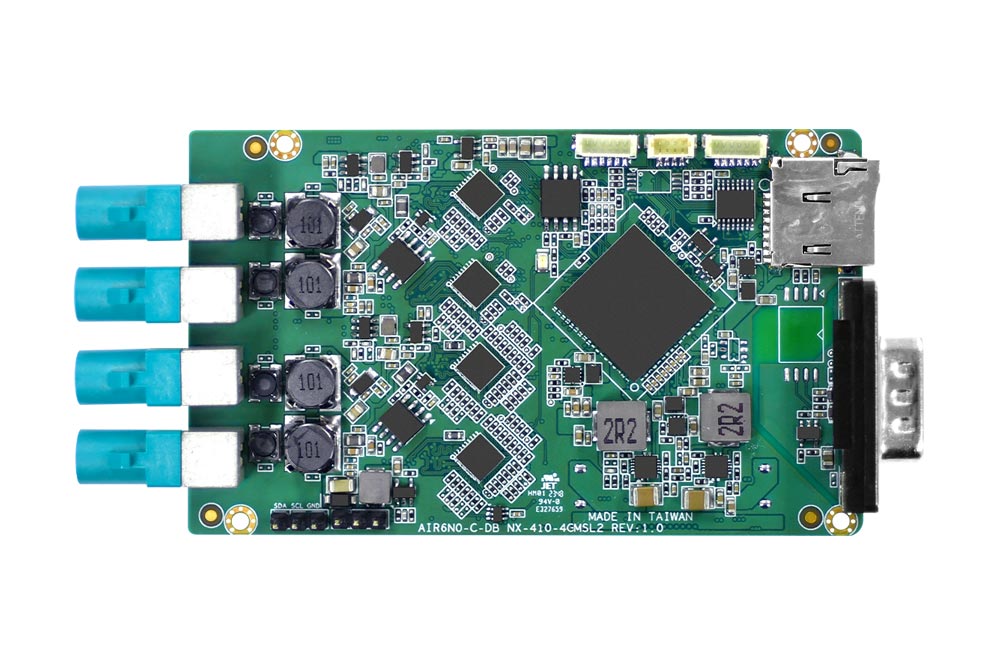

- 4xGMSL2 In
- 1xCAN Bus
- 2×M.2, Gen 4×2 M Key / Gen 4×1 E Key
- 1xUSB3.2 Gen2
- 1xMini DisplayPort
| SOM | Orin NX Super 16GB | Orin NX Super 8GB | Orin Nano Super 8GB | Orin Nano Super 4GB |
|---|---|---|---|---|
| CPU | 8-Core Arm® Cortex®-A78AE v8.2 64-Bit CPU 2MB L2 + 4MB L3 | 6-Core Arm® Cortex®-A78AE v8.2 64-Bit CPU 1.5MB L2 + 4MB L3 | 6-Core Arm® Cortex®-A78AE v8.2 64-Bit CPU 1.5MB L2 + 4MB L3 | |
| GPU | 1024-Core NVIDIA Ampere Architecture GPU with 32 Tensor Cores | 512-core NVIDIA Ampere Architecture GPU with 16 Tensor Cores | ||
| AI Performance | 157 TOPS | 117 TOPS | 67 TOPS | 34 TOPS |
| System Memory | 16GB 128-bit LPDDR5 102.4GB/s |
8GB 128-bit LPDDR5 102.4GB/s |
8GB 128-bit LPDDR5 102GB/s |
4GB 128-bit LPDDR5 51GB/s |
| Storage | Supports External NVMe 1xMicro SD Card Slot |
|---|---|
| Display Interface | 1xMini DP1.4 |
| Ethernet | 1xRJ45 for 10/100/1000Mbps Ethernet (DHCP Client) |
| Expansion Slot | 1×M.2 2230 M Key PCIe Gen4×2 Slot (Nano: Gen3×2) 1×M.2 2230 E Key PCIe Gen4×1 Slot (Nano: Gen3×1) |
| USB | 1xUSB3.2 Gen2 (Type-C) |
| MIPI | 8 MIPI CSI 2 Lanes ( D-PHY 2.1, Support MIPI Camera, Capture Card ) |
| Perherial Communication | 10 Pin Header 1×USB2.0 4×GPIO 1×I2C 6 Pin Wafer 1×UART (*) 3 Pin Jumper (JP1) 1×I2C 3 Pin Jumper (JP2) 1×UART(*) DB9 1×CAN Bus * Please select either UART of 3 Pin Jumper or UART of 6 Pin Wafer to use |
| Misc. Features | Firmware Upgradable |
| Input | 4xGMSL2 |
|---|
