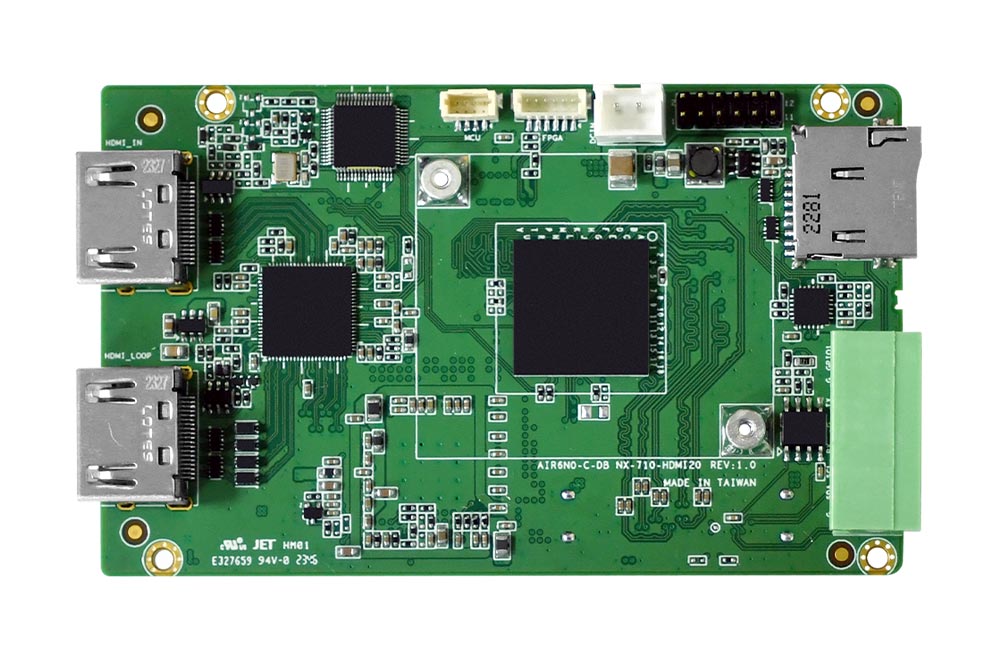

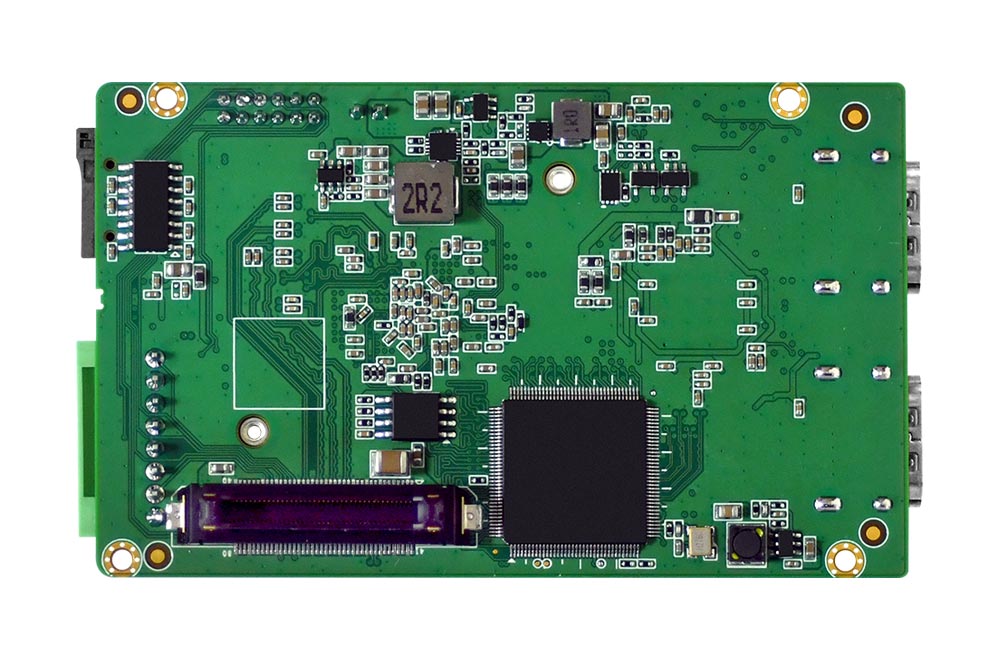

AIR6N0-C-MB NX HDMI2.0

AI Edge for 4K60 HDMI2.0
  • Powered by NVIDIA® Jetson Orin™ NX up to 100 / 70 TOPS
  • Business Card Size (90mmx55mm)
  • 1xHDMI2.0 In & Loop
  • 1xUSB3.2 Gen2
  • 1xMini DisplayPort

System

CPU Jetson Orin NX 8GB
6-Core Arm® Cortex®-A78AE v8.2 64-Bit CPU
1.5MB L2 + 4MB L3
Jetson Orin NX 16GB
8-Core Arm® Cortex®-A78AE v8.2 64-Bit CPU
2MB L2 + 4MB L3
GPU 1024-Core NVIDIA Ampere Architecture GPU with 32 Tensor Cores
API Performance NVIDIA Jetson Orin™ NX 8GB, 70 TOPS
NVIDIA Jetson Orin™ NX 16GB, 100 TOPS
System Memory NVIDIA Jetson Orin™ NX 8GB, 8GB LPDDR5
NVIDIA Jetson Orin™ NX 16GB, 16GB LPDDR5

Interface

Storage Supports External NVMe
Display Interface 1xMini DP1.4
Ethernet 1xRJ45 for 10/100/1000Mbps Ethernet
DHCP Client
Expansion Slot M2
1xM2 2280 M Key PCIe Gen4x4 Slot
1xM2 2280 M Key PCIe Gen4x1 Slot
USB 4xUSB3.2 Gen2 (Type-A)
1xUSB3.2 Gen1 (Pin Header)
1xUSB3.2 Gen1 (Pin Header, Contains USB3.0 Signal Only)
MIPI 8xMIPI CSI Lanes (Support MIPI Camera, Capture Card)
Audio 1xLine In (3.5mm or Pin Header)
1xLine Out (3.5mm or Pin Header)
Perherial Communication 1xRS232 (Phoenix Connector or Pin Header)
1xRS485 (Phoenix Connector or Pin Header)
4xGPIO (Pin Header)
3xI2C (Pin Header)
Misc. Features Firmware Upgradable
AutoPower (Pin Header)

PSE Feature

IP Camera 4xRJ45 for 10/100/1000Mbps Ethernet with PSE Support (4x15W,802.3af)
PSE Power Supply 4x15W (IEEE802.3af) or 4x30W (IEEE802.3at)
