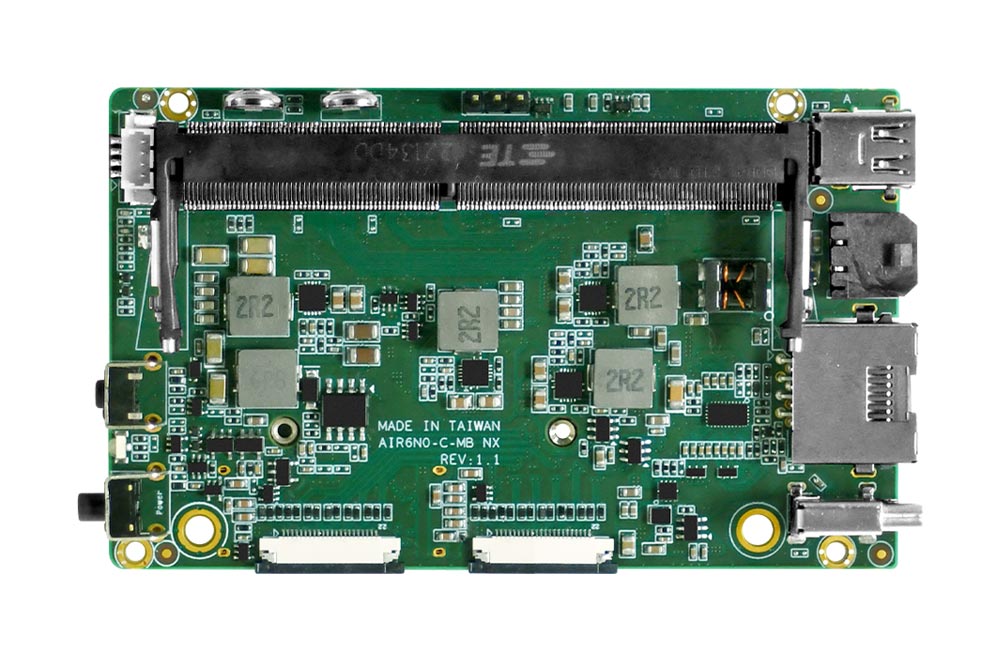

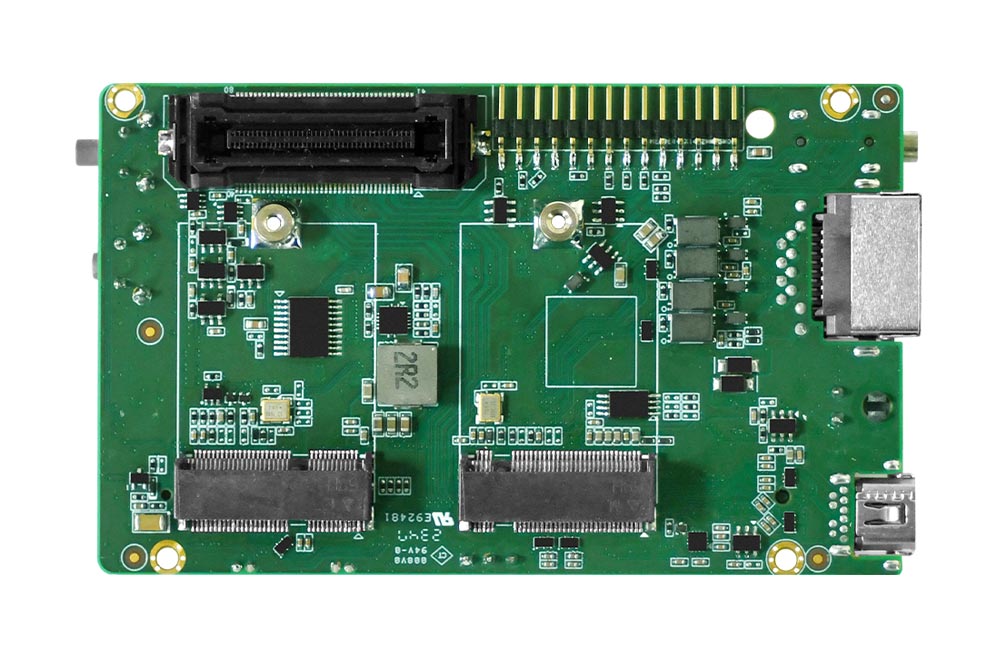

AIR6N0-C-MB NX

Business Card Size AI Edge Motherboard
  • Powered by NVIDIA® Jetson Orin™ NX up to 100 / 70 TOPS
  • Business Card Size (90mmx55mm)
  • 2xM.2, Gen 4x2 M Key / Gen 4x1 E Key
  • 1xUSB3.2 Gen2
  • 1xMini DisplayPort

System

CPU Jetson Orin NX 8GB
6-Core Arm® Cortex®-A78AE v8.2 64-Bit CPU
1.5MB L2 + 4MB L3
Jetson Orin NX 16GB
8-Core Arm® Cortex®-A78AE v8.2 64-Bit CPU
2MB L2 + 4MB L3
GPU 1024-Core NVIDIA Ampere Architecture GPU with 32 Tensor Cores
API Performance NVIDIA Jetson Orin™ NX 8GB, 70 TOPS
NVIDIA Jetson Orin™ NX 16GB, 100 TOPS
System Memory NVIDIA Jetson Orin™ NX 8GB, 8GB LPDDR5
NVIDIA Jetson Orin™ NX 16GB, 16GB LPDDR5

Interface

Storage Supports External NVMe
1xMicro SD Card Slot
Display Interface 1xMini DP1.4
Ethernet 1xRJ45 for 10/100/1000Mbps Ethernet
DHCP Client
Expansion Slot M2
1xM.2 2230 M Key PCIe Gen4x2 Slot
1xM.2 2230 E Key PCIe Gen4x1 Slot
USB 1xUSB3.2 Gen2 (Type-C)
MIPI 8xMIPI CSI-2 Lanes (D-PHY 2.1, 2x4 MIPI Lanes, Support MIPI Camera, Capture Card)
Perherial Communication Custom Connector
2xUSB3.2 Gen2
1xPCIe Gen4x4
4xGPIO
2xUART
3xI2C
1xCAN Bus

14 Pin Header
1xUSB2.0
4xGPIO
1xUART
1xI2C
Misc. Features Firmware Upgradable
1xCustom Connector (For Additional Add-On Board)

Additional Expansion Board (Optional)

GPU 1xM.2 2280 M Key PCIe Gen4x4 Slot
API Performance 1xUSB3.2
System Memory 1xMicro SD Card Slot
4xGPIO
2xI2C
1xRS232
1xRS485
