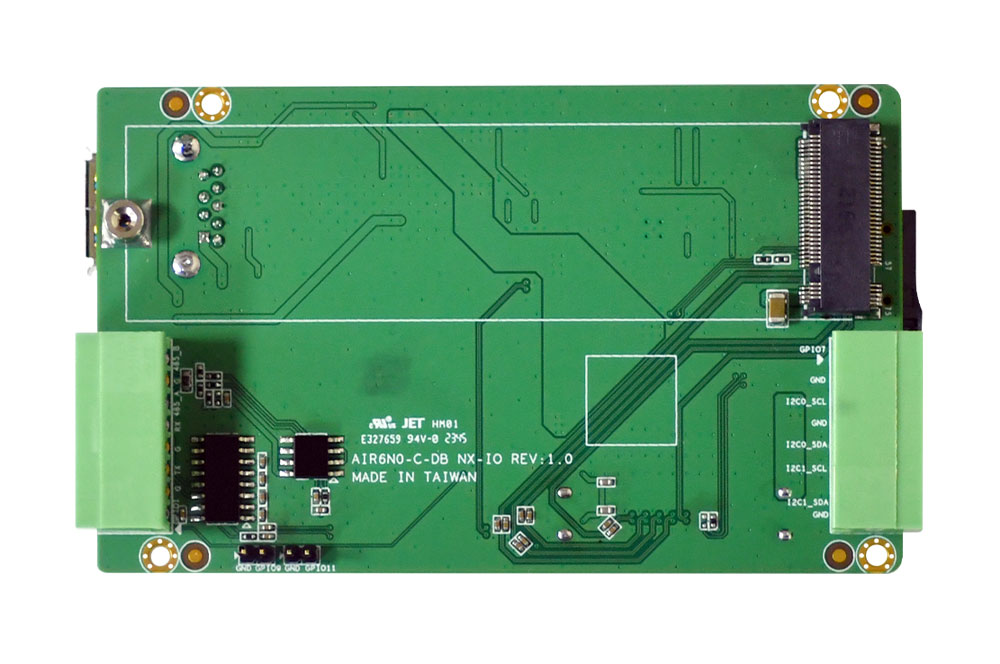

AIR6N0-C-MB NX IO

Card Size AI Edge with Multi AIoT Expansion
  • Powered by NVIDIA® Jetson Orin™ NX up to 100 / 70 TOPS
  • Business Card Size (90mmx55mm)
  • 3xM.2, 8xMIPI CSI-2 Lanes and RS232 / RS485 / GPIO
  • 2xUSB3.2 Gen2
  • 1xMini DisplayPort

System

CPU NVIDIA Jetson Orin NX 8GB
6-Core Arm® Cortex®-A78AE v8.2 64-Bit CPU
1.5MB L2 + 4MB L3
NVIDIA Jetson Orin NX 16GB
8-Core Arm® Cortex®-A78AE v8.2 64-Bit CPU
2MB L2 + 4MB L3
GPU 1024-Core NVIDIA Ampere Architecture GPU with 32 Tensor Cores
API Performance NVIDIA Jetson Orin™ NX 8GB, 70 TOPS
NVIDIA Jetson Orin™ NX 16GB, 100 TOPS
System Memory NVIDIA Jetson Orin™ NX 8GB, 8GB LPDDR5
NVIDIA Jetson Orin™ NX 16GB, 16GB LPDDR5

Interface

Storage Supports External NVMe
1xMicro SD Card Slot
Display Interface 1xMini DP1.4
Ethernet 1xRJ45 for 10/100/1000Mbps Ethernet
DHCP Client
Expansion Slot M2
1xM.2 2230 M Key PCIe Gen4x2 Slot
1xM.2 2230 M Key PCIe Gen4x1 Slot
1xM.2 2230 E Key PCIe Gen4x1 Slot
USB 1xUSB3.2 Gen2 ( Type-A )
1xUSB3.2 Gen2 (Type-C)
MIPI 8xMIPI CSI-2 Lanes (D-PHY 2.1, 2x4 MIPI Lanes, Support MIPI Camera, Capture Card)
Perherial Communication 14 Pin Header
1xUSB2.0
4xGPIO
1xUART
1xI2C

8 Pin Phoenix Connector ( CON1 )
1xGPIO
2xI2C
8 Pin Phoenix Connector ( CON6 )
1xGPIO
1xRS232
1xRS485
Misc. Features Firmware Upgradable
