- Aspect Ratio:16:9
- Resolution:1920 x 1080 pixels
- Brightness:350nits
- Contrast Ratio:3000:1 / 1000:1
- I/O:DVI, HDMI, DP
- Audio:10W (8Ω) speaker*2
- VESA:100*100 / 100*200
- Certification:IEC60601 / CE / FCC / RoHS / REACH
| Product Type | True Flat Series Plastic Medical LCD monitor | |
|---|---|---|

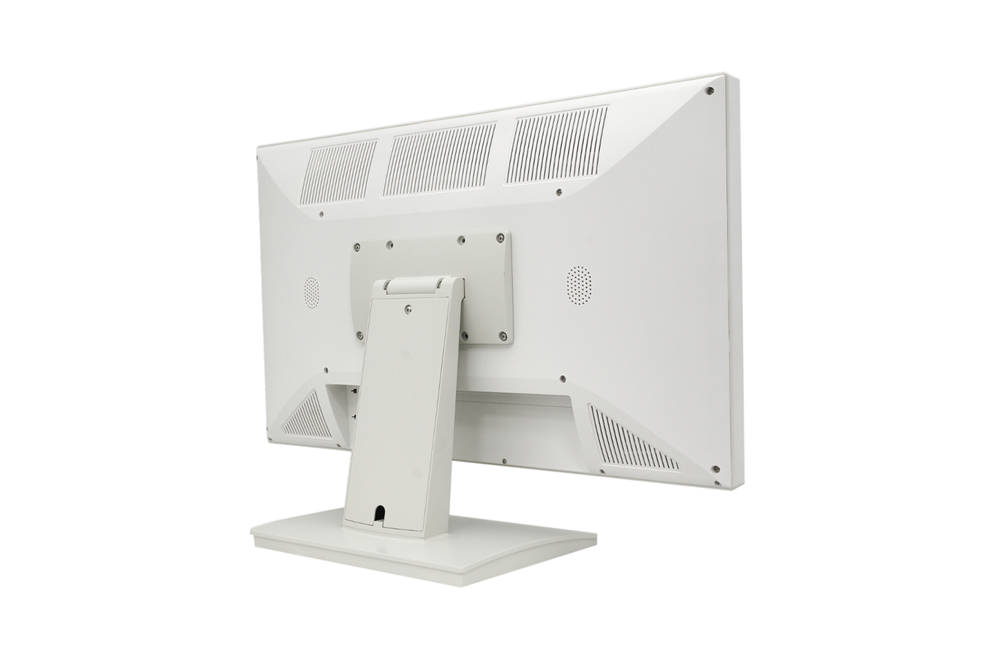

| Chassis Type | Plastic chassis ( ABS ) with 100 x 100 / 100 x 200 mm VESA mount | |
| DICOM / GAMMA | Optional: Gamma 2.2 / DICOM | |
| Glass / Touch Panel | Optional: Projective capacitive touch (USB interface) / Glass | |
| LCD Panel Spec | 27" LED backlight | |
| Panel Resolution | 1920 x 1080 pixels | 2560 x 1440 pixels |
| Active Screen Area | 597.6 x 336.15 mm | 596.74 x 335.66 mm |
| Color Depth | 16.7M colors (RGB 8-bit) | |
| Brightness / Contrast | 350 nits / 3000 :1 | 350 nits / 1000 :1 |
| Viewing Angle (Typ.) | 178°(H) / 178°(V) | |
| Support Resolution | 640 x 480 800 x 600 1024 x 768 1280 x 1024 1360 x 768 1680 x 1050 1920 x 1080 |
640 x 480 800 x 600 1024 x 768 1280 x 1024 1360 x 768 1680 x 1050 1920 x 1080 2560 x 1440 |

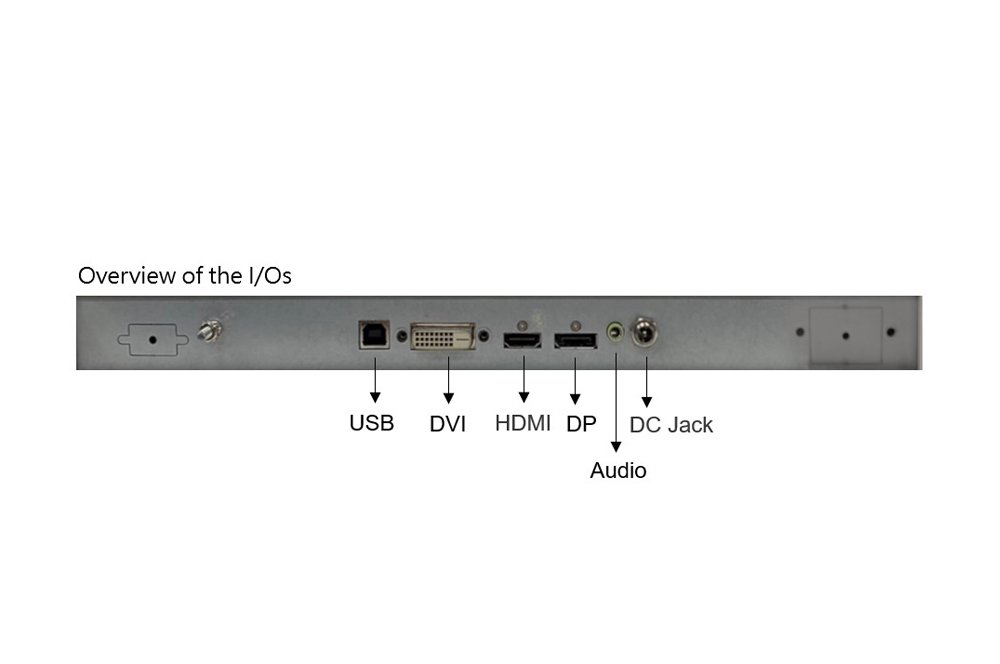

| I/O Port | DVI DP 1.2 HDMI 1.4 Audio in(3.5mm Phone Jack) USB 2.0 Type B (Touch)(Optional) DC Jack ( φ = 2.5mm ) (Lockable) |
|
| Audio | Optional : 10W (8 Ω) speaker x 2 | |
| Power | External power adapter, AC IN: 100 ~ 240V; 50/60Hz DC OUT: 12V / 5 A |
|
| Power Consumption | Max. 47.9 W | |
| Accessory (Optional) | DVI cable HDMI cable DP cable Audio cable USB cable Adapter Power cable, CD |
|
| Dimension | Main body : 647.85 (W) 7 2(H) 25 0 (D) mm | |
| Packing : 730(W) 560(H) 300(D) mm | ||
| Net Weight (Reference) | 8.9 kg | |
| Gross Weight (Reference) | 12.9 kg | |
| Temperature Range | Operating : 5 ~ 40°C / Storage : -10 ~ 60°C | |
| Humidity Range | Operating : 20 ~ 80% / Storage : 10 ~ 90% | |
| EMC / Safety | IEC60601 / CE / FCC, RoHS / REACH | |
