- NVIDIA® Jetson Orin™ NX SoM with 1024 CUDA Cores
- 10-60VDC Input Supports 3S-14S Lithium Battery
- 2 x GMSL-2 Cameras Support
- Lightweight Compact Design
- Built-in 3-axis Accelerometer
| CPU | NVIDIA® Jetson Orin™ NX 16GB – 100 TOPS (1024 CUDA cores + 8-core ARM Cortex-A78AE CPU + 16 GB LPDDR5) NVIDIA® Jetson Orin™ NX 8GB – 70 TOPS (1024 CUDA cores + 6-core ARM Cortex-A78AE CPU + 8 GB LPDDR5) NVIDIA® Jetson Orin™ Nano 8GB – 40 TOPS (1024 CUDA cores + 6-core ARM Cortex-A78AE CPU + 8GB LPDDR5) |
|---|---|
| Security | Platform Security Controller (PSC), Security Engine (SE) |
| Watchdog | Auto reset for unresponsive system |
| Sensor | Built-in 3-axis accelerometer |

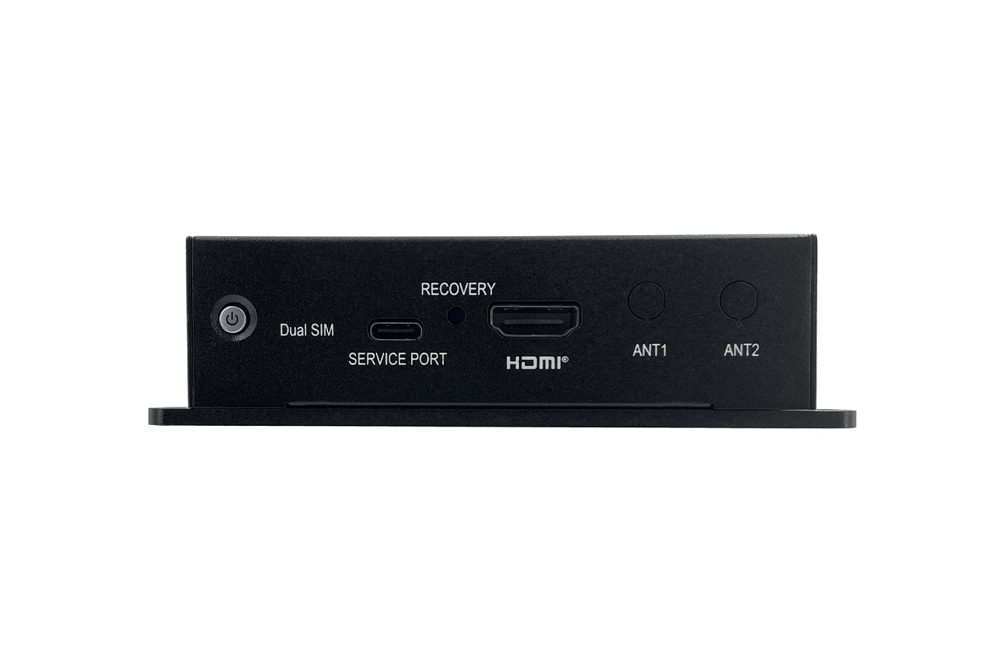

| Video | 1 x HDMI® Type-A output |
|---|---|
| Audio | 1 x HD audio output via HDMI® |
| Ethetnet | 1 x 2.5GbE (Intel® I226-IT) via RJ-45 1 x GbE (NVIDIA SoM) via RJ-45 |
| Camera | 2 x GMSL-2 via FAKRA |
| CAN | 1 x CAN FD |
| USB | 2 x USB 3.2 |

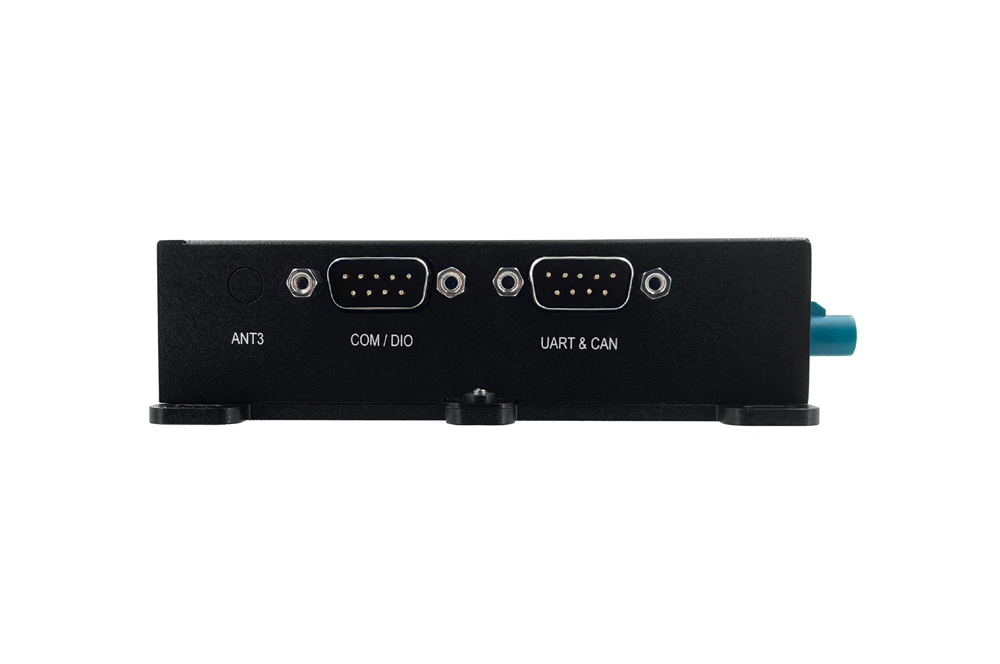

| DIO | 1 x DI, 1 x DO, I2C (optional) |
| GPIO | 1 x UART w/ 3.3VDC (connector shared with CAN FD) |
| COM | 1 × RS-232/422/485 |
| Mgmt. Port | 1 x USB type-C for system recovery (device only) |
| M.2 | 1 x M.2 3042/3052 Key B for WWAN w/ dual SIM support 1 x M.2 2230 Key E for Wi-Fi/BT (For IBOX-604-G2W only) |
|---|
| Type | 1 x M.2 2242 Key M for NVMe SSD |
|---|
| Operating System / SDK | NVIDIA® JetPack 6.2 or above (Jetson Linux and NVIDIA® development tools included) |
|---|
| Power Input | DC 10-60V (nominal power input DC 11V/22V/58V) via 3-pin terminal block |
|---|---|
| Power Protection | OCP, OVP, surge protection, reversed polarity protection |
| Power Management | Ignition detection, Smart Power Management |
| RTC Battery | Built-in RTC coin cell battery |
| Dimension | 120 x 115 x 32 mm (4.73 x 4.53 x 1.26 in.) |
|---|---|
| Weight | <333 g (Excluding enclosure) *Included enclosure w/o M.2 2230 slot (1 x SoM, 2 x DB-9 cable) |
| Construction | Aluminum Alloy |
| Antenna | 3 x SMA connector mounting hole |
| Relative Humidity | 10% RH – 90% RH (non-condensing) |
|---|---|
| Operating Temp. | -25°C ~ 50°C (-13°F ~ 122°F) with 0.6 m/s airflow *Operating temp. varies by accessories installed. |
| Storage Temp. | -40°C ~ 80°C (-40°F ~ 176°F) |
| Vibration | MIL-STD-810H, Method 514.8, Procedure I, Cat.4 (Operating) IEC60068-2-64, random, 2.5G@5~500Hz, 1hr/axis |
| Shock (with SSD) | MIL-STD-810H, Method 516.8, Procedure I, Trucks and semi-trailers=15G (11ms) with SSD (Operating) |
| Certification | CE, FCC Class A, UKCA |
