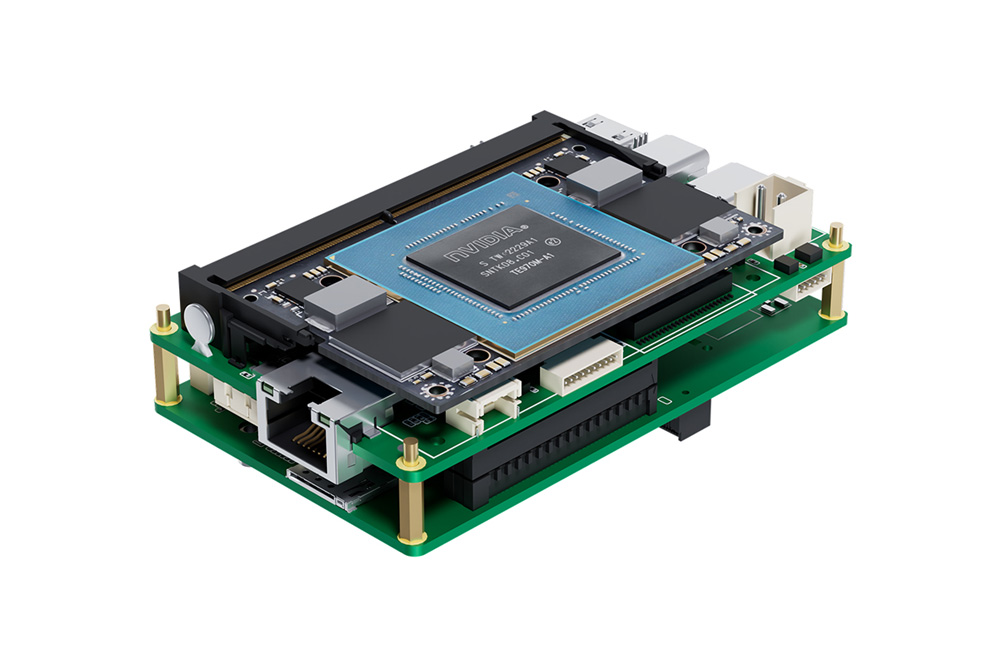

ECM002

Advanced AI Edge Module for High-Performance UAV Computing

Powered by NVIDIA® Jetson Orin™ NX Super up to 157 TOPS
3-Axis Digital Accelerometer, 3-Axis Digital Gyroscope and 3-Axis Magnetometer
1×M.2 E Key / 2×M.2 M Key / 1×M.2 B Key
2×USB3.2 Gen2 Type-C
I2C / GPIO / CAN BUS
Compact Design

System

CPU	NVIDIA Jetson Orin™ NX 16GB Super 8-Core Arm® Cortex®-A78AE v8.2 64-Bit CPU 2MB L2 + 4MB L3 NVIDIA Jetson Orin™ NX 8GB Super 6-Core Arm® Cortex®-A78AE v8.2 64-Bit CPU 1.5MB L2 + 4MB L3
GPU	1024-Core NVIDIA Ampere Architecture GPU with 32 Tensor Cores
AI Performance	NVIDIA Jetson Orin™ NX 16GB Super 157 TOPS NVIDIA Jetson Orin™ NX 8GB Super 117 TOPS
System Memory	NVIDIA Jetson Orin™ NX 16GB Super 16GB LPDDR5 NVIDIA Jetson Orin™ NX 8GB Super 8GB LPDDR5

Interface

Storage	Supports External NVMe
Display Interface	1xMini HDMI2.0
Ethernet	1×RJ45 for 10/100/1000Mbps Ethernet DHCP Client
Expansion Slot	Main Board 1×M.2 2230 E Key PCIe Gen41/USB2.0 Slot 1×M.2 2230 M Key PCIe Gen42 Slot Daughter Board 1×M.2 2230 M Key PCIe Gen4*4 Slot 1×M.2 3042/3052 B Key USB3.0 Slot
USB	Main Board 3×USB2.0 (Wafer) 2×USB3.2 Gen2 (Type-C) Daughter Board 1×USB2.0 (Wafer)
MIPI	8 MIPI CSI-2 Lanes (D-PHY 2.1, Support MIPI Camera, Capture Card)
Peripheral Communication	Main Board 3-Axis Digital Accelerometer 3-Axis Digital Gyroscope 1×UART ( Shared with Daughter Board ) 4×GPIO 1×I2C ( Shared with Daughter Board ) 2×PWM FAN 1×CAN Bus Daughter Board 3-Axis Magnetometer 2×UART ( UART0 Shared with Main Board ) 1×I2C ( I2C1 Shared with Main Board ) 1×Line In 1×Speaker Left & Right 1×SPI 2×CAN Bus 1×Nano SIM Card Slot
Misc. Features	Firmware Upgradable

Environment

Development	JetPack 6.2 or Higher
Power Supply	DC input : 12~36V
Power Consumption	TBA
Operating Temp.	0~60°C with Airflow
Storage Temp.	-20~80°C

Mechanical

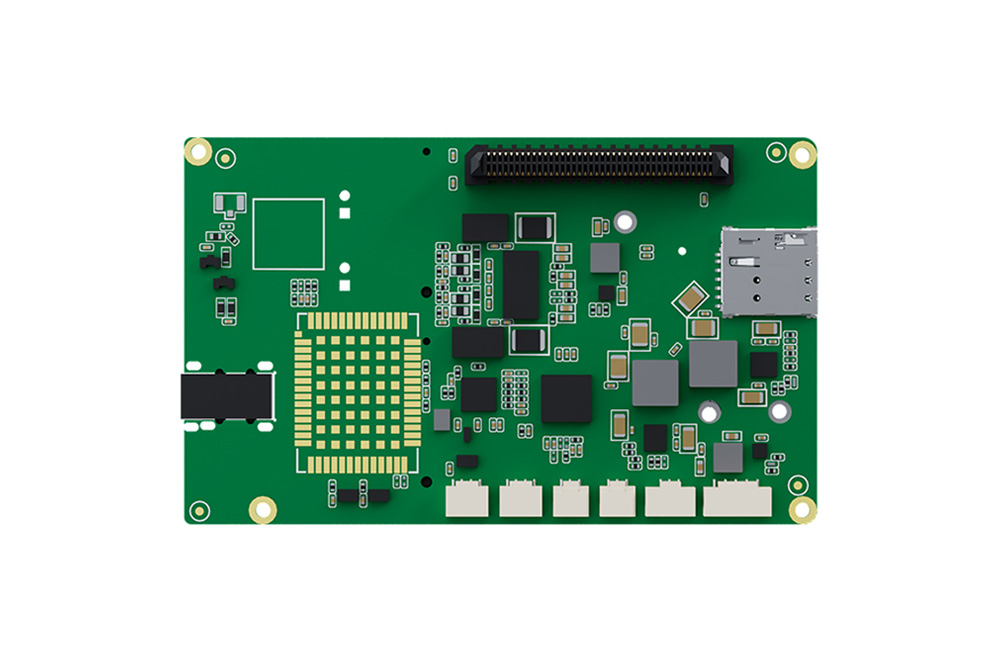

Main Board	90 x 55 mm

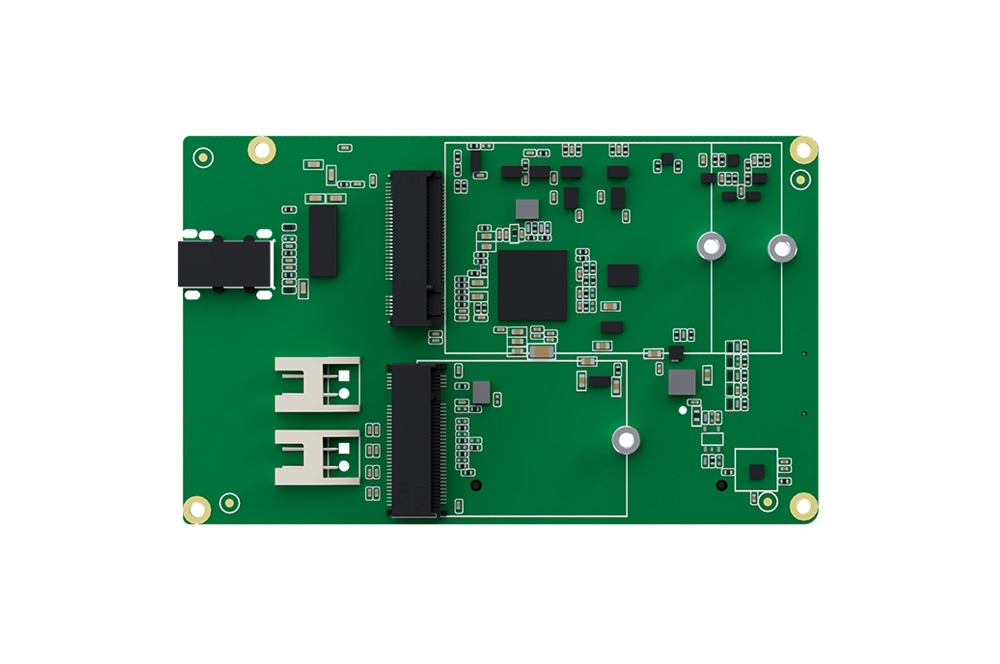

Daughter Board	90 x 55 mm

Video Feature

Video Encode	AV1 (UHP) : 1x4K60 \| 3x4K30 \| 6x1080p60 \| 12x1080p30 H.265 (UHP) : 1x4K60 \| 3x4K30 \| 6x1080p60 \| 12x1080p30 H.264 (UHP) : 1x4K60 \| 2x4K30 \| 5x1080p60 \| 11x1080p30
Video Decode	AV1 (Main Profile) : 1x8K30 \| 2x4K60 \| 4x4K30 \| 10x1080p60 \| 20x1080p30 H.265 (Main, Main10) : 1x8K30 \| 2x4K60 \| 4x4K30 \| 9x1080p60 \| 18x1080p30 H.264 (Baseline, Main, High) : 1x4K60 \| 2x4K30 \| 5x1080p60 \| 11x1080p30 VP9 (Profile 0, Profile 2) : 1x4K60 \| 3x4K30 \| 7x1080p60 \| 15x1080p30

SDK

QCAP	Capture High Performance Renderer Image Snapshot Deinterlace, Alpha Blending Engine Auto Signal Detection 2D/3D Video, Audio and VANC Streams Capture
	Record Encrypt / Sync / Clone / Recording Time-Shifting / Rewind / Pre-Event / Recording Multi-Streams ( 3D ) Recording Animation Transition Effect Video Cropping, Scaling and Alpha Blending Engine
	Stream 2D/3D Universal Stream Client 2D/3D Multi-Streams Stream Server RTSP, RTMP, HLS, SRT, TS, WebRTC. NDI-HX (), Full NDI (), Dante AV-H () Animation Transition Effect Video Cropping, Scaling and Alpha Blending Engine Separate License Required
QDEEP	AI SDK Integrated Multiple Algorithms and Deep-Learning Models in Various Fields of Applications Face Recognition Objects Detection Objects Segment Optical Character Recognition License Plate Recognition Customizable Video AI Functions Upon Request
