Medical Edge AI

System

CPU / Chipset	Intel® Celeron® Processor N6210
Supported OS	Windows 10; Windows 11; Linux Ubuntu

Network

Wi-Fi	IEEE 802.11a/b/g/n/ax, Intel® Wi-Fi 6E AX210 (optional)
Bluetooth	v5.2

Storage

Storage	On-board eMMC 32GB
RAM	On-board LPDDR4x 8GB

Expansion Slots

Expansion Slots	1 x M.2 2230 A key slot (PCIe + USB)  1 x M.2 2280 M key slot (PCIe)

I/O Interface

Front I/O	1 x Power on/off switch (with power LED) 1 x Reset button 1 x Clear CMOS 1 x AT/ATX switch 4 x USB 3.2 Gen 2 (Type A)

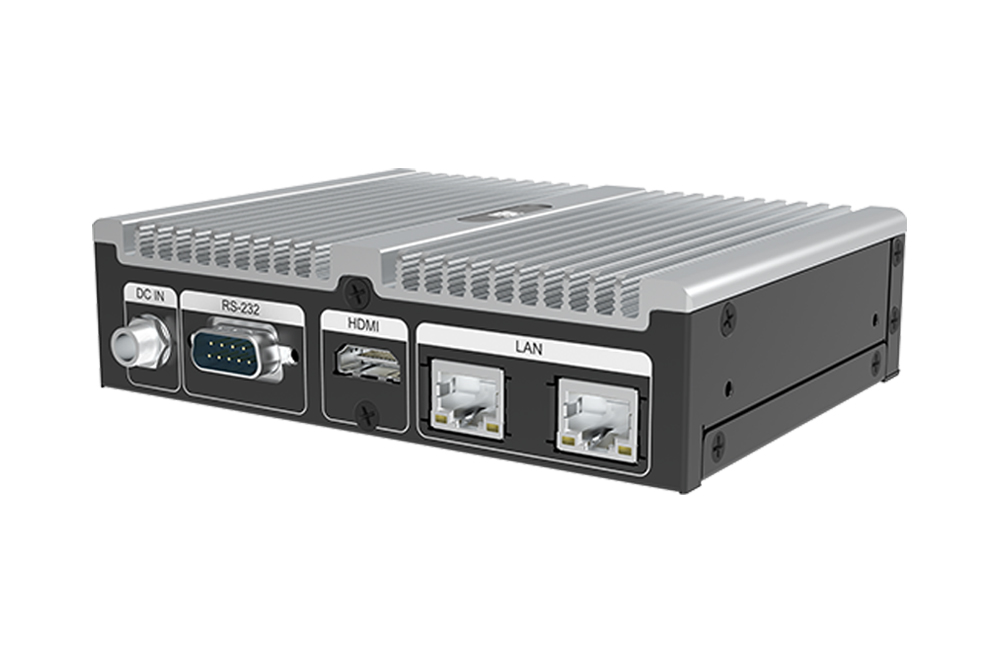

Rear I/O	1 x 12V DC jack 1 x RS-232 1 x HDMI™ out 2 x GbE LAN

Indicator & Buttons

Indicators	Power LED

Physical Characteristics

Thermal	Fanless
Construction Material	Extruded aluminum alloys
Mounting	VESA 75 x 75 mm
Weight (Net) (kg)	0.688
Weight (Gross) (kg)	1.84
Dimensions (LxWxH) (mm)	137 x 102.8 x 36

Power

Power Adapter	65W medical grade power adapter

Environment

Operating Temperature	0°C ~ 40°C
Storage Temp.	-20°C ~ 60°C
Humidity	10% ~ 95% (non-condensing)
Vibration	1G
Operating Shock	5G peak acceleration (11ms duration)
Non-operating shock	15G peak acceleration (11ms duration)

Certifications

Safety & EMC	CE, FCC Class B Part18, UL 60601-1, IEC/EN 60601-1, IEC/EN 60601-1-2

Ordering Information

MES150	Fanless embedded system, Intel® Celeron® N6210, on-board LPDDR4x 8GB, on-board eMMC 32GB, mounting kits, R10, RoHs
