Medical Edge AI

System

CPU	13th Gen Intel® Core™ i9-13900/ 13th Gen Intel® Core™ i7-13700/ 13th Gen Intel® Core™ i5-13500
Chipset	Intel® R680E
GPU	Compatible with NVIDIA Quadro RTX Ampere series GPUs

Display (MES230D)

LCD Size	10.1"
LCD Resolution	1920x1200
LCD Brightness (cd/m²)	400
LCD Contrast Ratio	900:1
LCD Color	16.7M (8-bit)
LCD Pixel Pitch (mm)	0.03764 x 0.11292
LCD Viewing Angle (H-V)	160°/160°
Touch Screen	Projected capacitive type with 10-point multi-touch
Touch Controller	ILI
Touch Surface Hardness	6H

Network

Ethernet Controller	Intel® I226-V

Storage

Storage	M.2 2280 PCIe Gen4 x4 NVMe SSD
RAM	4 x 288-pin dual-channel DDR5 U-DIMM (up to 4400MHz), ECC and non-ECC unbuffered memory (up to 128GB total)

Expansion Slots

Type	1 x PCIe Gen4 x16 slot for GPU (supports full-height cards up to 111.15 mm (4.4 inches), full-length cards up to 312 mm (12.28 inches), and up to triple-slot widths, with a maximum TDP of 300W) 2 x PCIe Gen4 x4 slots for add-on cards 1 x M.2 2280 PCIe Gen4 x4 M-key slot for SSD

Audio

Speaker	2 x 3W speaker

I/O Interface

Front I/O	2 x USB 3.2 Gen 2

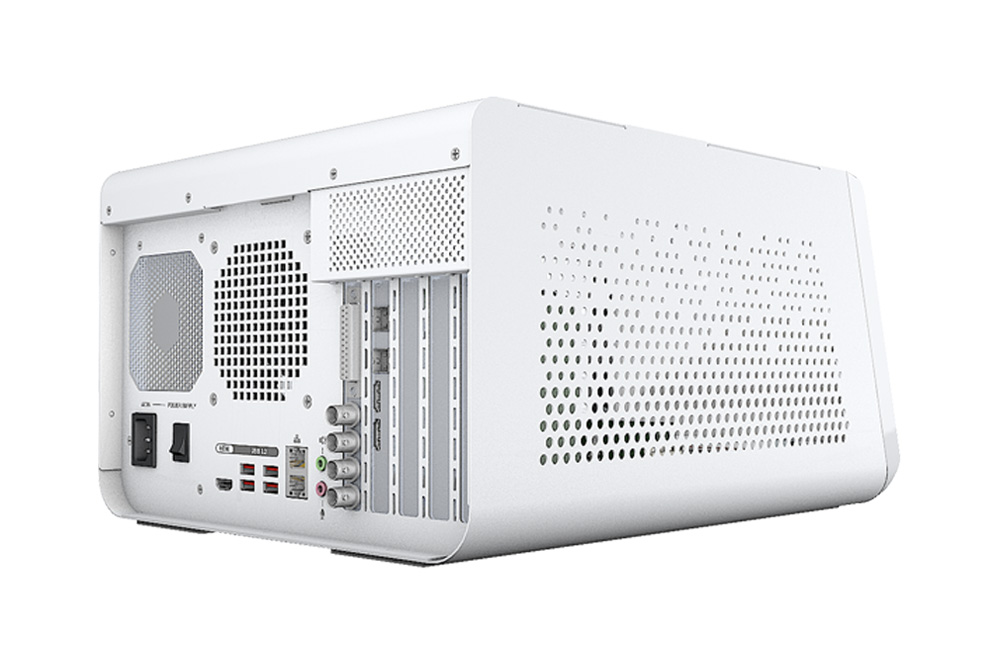

Rear I/O	1 x HDMI output 1 x AC IN 1 x Speaker 1 x Microphone  2 x 2.5 GbE LAN 4 x USB 3.2 Gen 2

Indicator & Buttons

Buttons	1 x System power button (with power LED) 1 x Power supply swich
Indicators	Power LED

Physical Characteristics

Color	White
Thermal	Smart fan
Construction Material	NCT(N); SECC
Weight (Net) (kg)	7.68
Weight (Gross) (kg)	10.69
Dimensions (LxWxH) (mm)	310 x 206 x 390

Power

Input	115V AC – 264V AC medical grade ATX power
Output	700W medical build in power supply

Environment

Operating Temperature	0°C ~ 40°C
Storage Temp.	-20°C ~ 65°C
Humidity	10% ~ 95% (non-condensing)
Vibration	1G
Operating Shock	5G peak acceleration (11ms duration)
Non-operating shock	15G peak acceleration (11ms duration)

Certifications

Safety & EMC	CE, FCC Class B Part18, UL 60601-1, IEC/EN 60601-1, IEC/EN 60601-1-2

Ordering Information

MES230D-i9/16G-R10	Medical AI Box PC, 10.1" panel, PCAP touchscreen, Intel® Core™ i9-13900, w/o GPU card, w/o M.2 SSD, DDR5 U-DIMM 16GB, one PCIe Gen 4 x16 slot, two PCIe Gen 4 x4 slots, 700W medical power supply, R10, RoHS
MES230D-i7/16G-R10	Medical AI Box PC, 10.1" panel, PCAP touchscreen, Intel® Core™ i7-13700, w/o GPU card, w/o M.2 SSD, DDR5 U-DIMM 16GB, one PCIe Gen 4 x16 slot, two PCIe Gen 4 x4 slots, 700W medical power supply, R10, RoHS
MES230D-i5/16G-R10	Medical AI Box PC, 10.1" panel, PCAP touchscreen, Intel® Core™ i5-13500, w/o GPU card, w/o M.2 SSD, DDR5 U-DIMM 16GB, one PCIe Gen 4 x16 slot, two PCIe Gen 4 x4 slots, 700W medical power supply, R10, RoHS
MES230-i9/16G-R10	Medical AI Box PC, w/o 10.1" panel, w/o PCAP touchscreen, Intel® Core™ i9-13900, w/o GPU card, w/o M.2 SSD, DDR5 U-DIMM 16GB, one PCIe Gen 4 x16 slot, two PCIe Gen 4 x4 slots, 700W medical power supply, R10, RoHS
MES230-i7/16G-R10	Medical AI Box PC, w/o 10.1" panel, w/o PCAP touchscreen, Intel® Core™ i7-13700, w/o GPU card, w/o M.2 SSD, DDR5 U-DIMM 16GB, one PCIe Gen 4 x16 slot, two PCIe Gen 4 x4 slots, 700W medical power supply, R10, RoHS
MES230-i5/16G-R10	Medical AI Box PC, w/o 10.1" panel, w/o PCAP touchscreen, Intel® Core™ i5-13500, w/o GPU card, w/o M.2 SSD, DDR5 U-DIMM 16GB, one PCIe Gen 4 x16 slot, two PCIe Gen 4 x4 slots, 700W medical power supply, R10, RoHS
