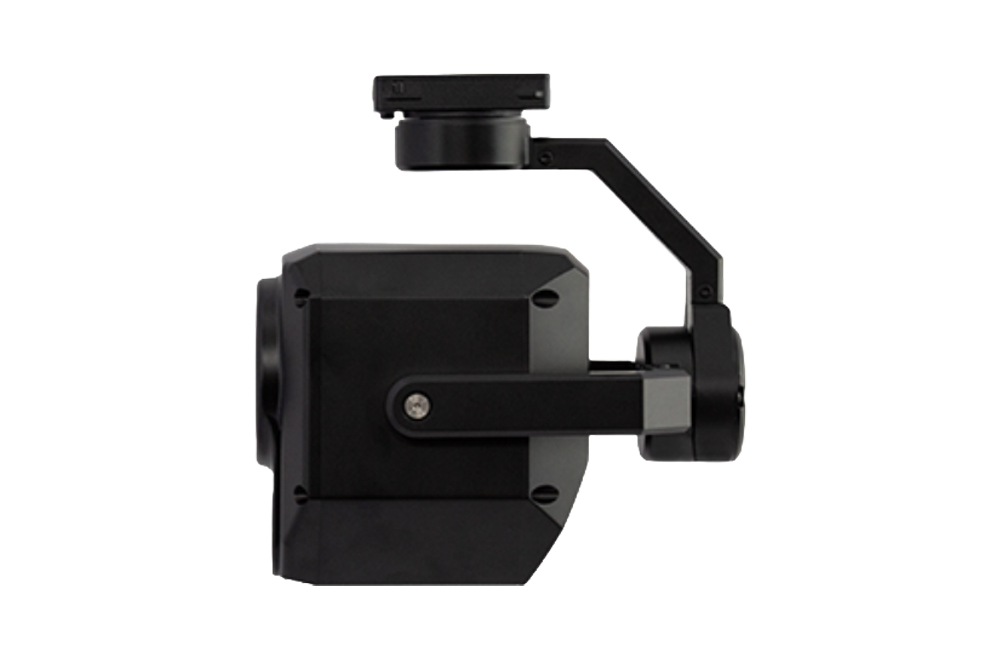

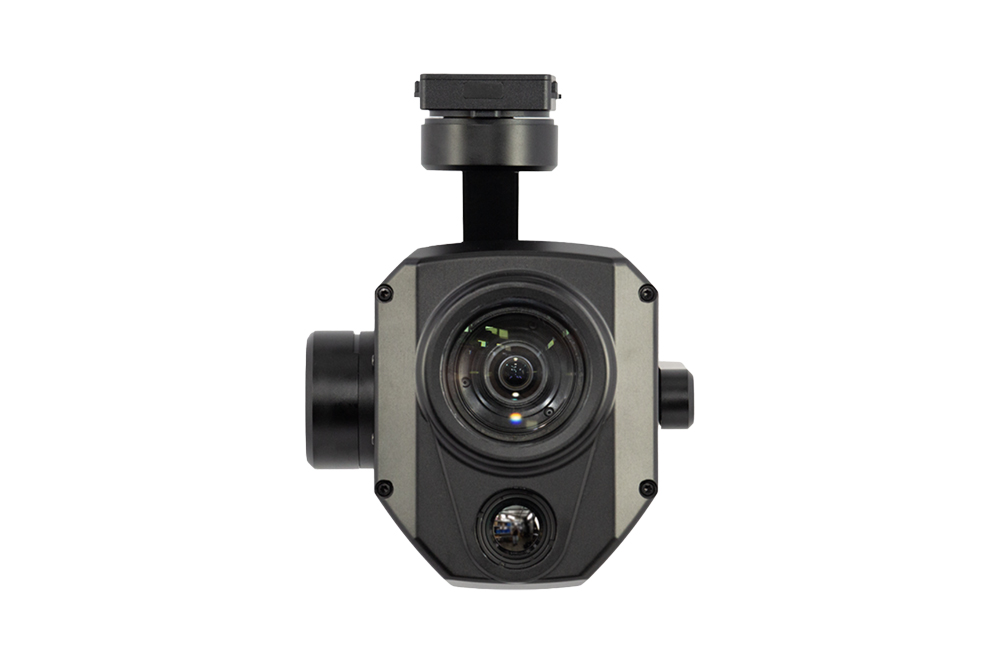

Drone / UAV Edge AI

General

Input Voltage	12 - 50V
Power	<20W
Weight	521.7g
Dimension	134 * 92 * 135mm
Operating Temp.	-10°C ~ 65°C
Storage Temp.	-20°C ~ 70°C
Memory Card	Micro SD Card
Interface	RJ45 Ethernet (IP)
Water Resistance Rating	IP55

Gimbal

Angle Vibration	±0.008°
Control Range	Pitch: +45° to -90°, Yaw: 360°
Structure Range	Pitch: -132.5° to 73°, Roll: ±60°, Yaw: ±360°
Control Speed	Pitch: 120°/s, Yaw: 180°/s

EO

CMOS	1/2.8" Sony Starvis CMOS Sensor
Pixel	5.14M pixels
Optical Zoom	10x" (for magnification or zoom) F=5mm ~ 50 mm
F-number	F1.4 ~ F2.5
FOV	6°~46° (Horizontal) ; 3°~24° (Vertical)
Sensitivity	0.008 lux (color) , 0.003 lux (black & white)
Resolution	2592x1944 @ 30fps, 2592x1520 @ 30fps, 1920x1080 @ 30fps, 1280x720 @ 30fps, 640x480 @ 30fps
DRI（M）(1.8m*0.5m)	D:5910  R:1470  I:740
Vid	H.264+ / H.264 / M-JPEG

IR

Sensor	non-cooler LWIR
Resoultion	640*480 @ 30fps
Lens	18mm Fixed-fouse lens
Sensitivity	<50mk
DRI（M）(1.8m*0.5m)	D : 630  R : 130  I : 70
