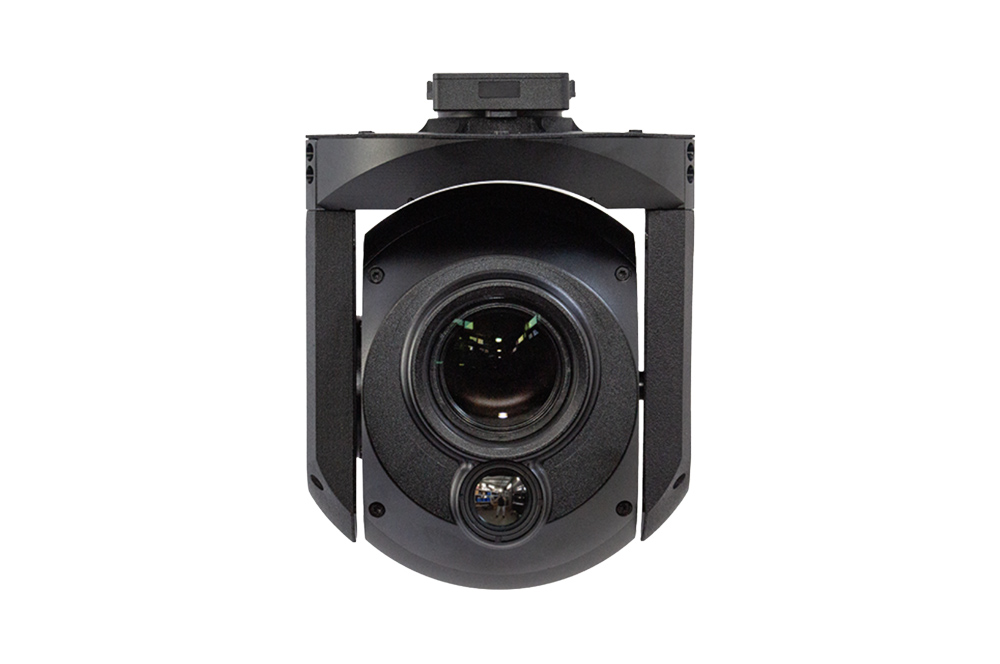

- Dual-Sensor Imaging System
- 4K Ultra HD Imaging
- Dual-Axis Stabilized Gimbal
- Precision Operation
- Quick-Release Design
- Water Resistance Rating
| Input Voltage | 12 - 50V |
|---|---|
| Power | 8.4W |
| Weight | 1066g |
| Dimension | 122 * 130 *165 mm |
| Operating Temp. | -10°C ~ 65°C |
| Storage Temp. | -20°C ~ 70°C |
| Memory Card | Micro SD Card |
| Interface | RJ45 Ethernet (IP) / TTL / POWER |
| Water Resistance Rating | IP55 |
| Angle Vibration | ±0.008° |
|---|---|
| Control Range | Pitch: +45° to -90°, Yaw: 360° |
| Structure Range | Pitch: +55° to -235°, Yaw: 360° |
| Control Speed | Pitch: 120°/s, Yaw: 180°/s |
| CMOS | 1/2.8" Sony Starvis CMOS Sensor |
|---|---|
| Pixel | 8M pixels |
| Optical Zoom | 30x" (for magnification or zoom) F=4.8mm ~ 144 mm |
| F-number | F1.5 ~ F3.4 |
| FOV | 3.07°~57.05° (Horizontal) ; 1.6°~34.04° (Vertical) |
| Resolution | 3840x2160 @ 30fps, 2592x1520 @ 30fps, 1920x1080 @ 30fps, 1280x720 @ 30fps, 640x480 @ 30fps |
| DRI（M）(1.8m*0.5m) | D:17010 R:4250 I:2130 |
| Vid | H.264+ / H.264 / M-JPEG |
| Sensor | non-cooler LWIR |
|---|---|
| Resoultion | 640*480 @ 30fps |
| Lens | 18mm Fixed-fouse lens |
| Sensitivity | <50mk |
| DRI（M）(1.8m*0.5m) | D : 630 R : 130 I : 70 |
