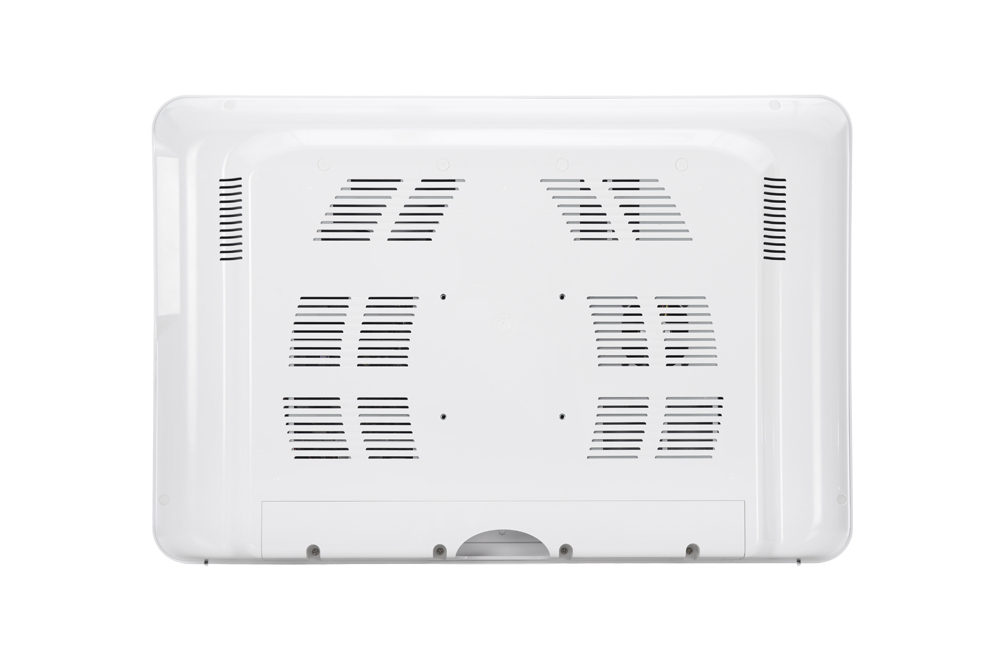

PCIe-Expandable Medical HMI

System

CPU / Chipset	LGA1700 package 12th /13th generation Intel® Core i7/i5/i3/Pentium/Celeron processor (35W max.) / Intel® Q670E Chipset
Graphic	Intel® integrated UHD Graphics 770 by CPU
MXM Graphics	NVIDIA RTX A1000/A2000/A4500 MXM Graphics (Optional)
RAM	Two 5600 MHz DDR5 SODIMM socket support dual Channel, non-ECC, up to 96GB
OS Support	Windows 10 IoT LTSC 2021 (64bit) / Windows 11 IoT GAC (64bit)
Storage	M.2 M.Key 2280 PCIe X 4 SSD (Support NVMe SSD up to 1TB) M.2 B/M Key, (2280) with PCIe x1 PCIe/SATA/USB
Expansion	M.2 E key 2230 x 1 M.2 B/M Key, (2280) with PCIe x1 PCIe/SATA/USB PCI-E x 4 expansion slot x 1 (40W max)
Display Size	23.8” LED Backlight
Display	1920 x 1080 (Full HD), 16.7M colors, 178(H) / 178(V), 250 nits (Typ.), CR: 3000 : 1 (Typ)
Touch Screen	Projected Capacitive Multi-Touch Panel (10 fingers) / Light Transmission: ≥ 85% / Hardness:≥ 7H pencil, pressure 765g/45° / Life: 50000

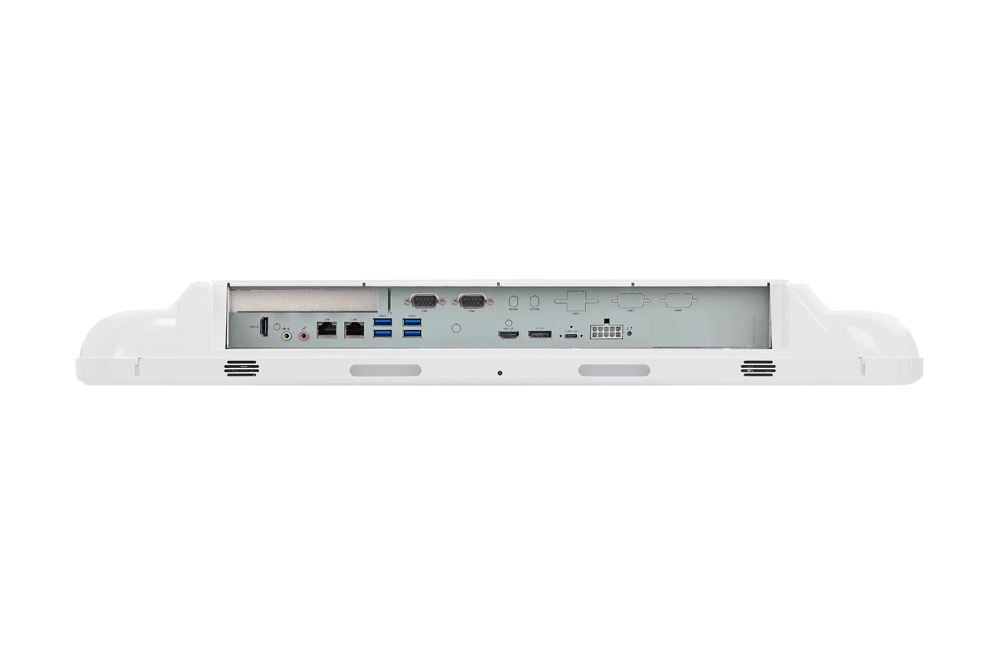

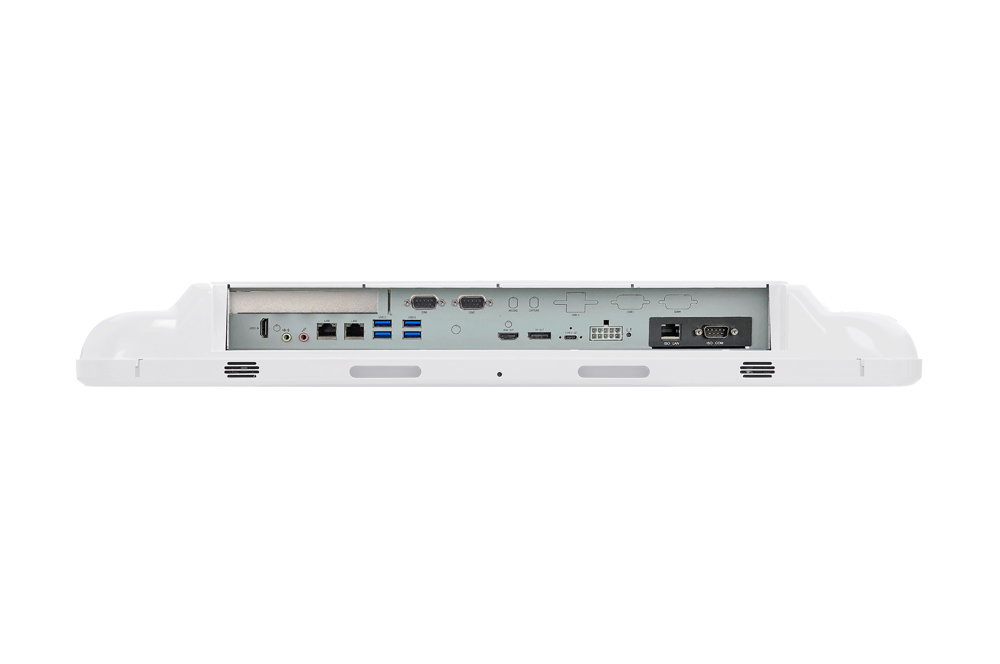

I.O. Ports

	WMP-24S IP0A (STD)	WMP-24S IP0B (ISO)
USB	4 x USB 3.2 Gen II (Type A) 1 x USB 3.2 II (Type C, Support DP 1.4a display output; 5V/3A power output)	4 x USB 3.2 Gen II (Type A) 1 x USB 3.2 II (Type C, Support DP 1.4a display output; 5V/3A power output)
COM	1 x RS232/RS422/RS485 1 x RS232	1 x ISO RS232/RS422/RS485
LAN	1 x Intel® I219LM with 10/100/1000 Mbps, support AMT / vPro  1 x Intel® I226V with 10/100/1000/2500 Mbps	1 x Intel® I219LM with 10/100/1000 Mbps, support AMT / vPro  1 x Intel® I226V with 10/100/1000/2500 Mbps, 1 x ISO RJ45
Audio	3.5mm phone jack connector * 2 (Line-out, Mic-In)
Video Out	DP 1.4a/DP++ x1, HDMI 2.0b x 1, HDMI-in x 1 (Without Audio)
Control Hot Key (R to L)	Power Button// Audio adjustment // brightness // Reading Light // LCD on/off // Clean me // Programming Function Key

Mechanical and Environmental

Cooling	Fan
Power Input	DC 14~19V input
Power Adaptor	AC input 100 ~240V / 47 ~ 63 Hz / DC output 19V / 250W (MPU250A-107 W/PSE)
Temperature	Operating Temperature: 0~40°C (IEC60068-2-78) Storage Temperature: -20~60°C
Humidity	Operating & Storage:10 ~ 90%, non-condensing
IP Rating	IP65 (Front Side)  IPX1 for whole system / Plastic White w/Anti-bacteria (MRSA)
Dimensions (Net)	594 mm (H) x 397 mm (V) x 74.7 mm (T)
Weights (Net)	9 KG (w/o power adapter)
Mounting	Optional Stand, VESA 100
Certification	CE: EN IEC 60601-1-2:2015/A1:2021(Ed 4.1)  EN 60601-1: 2006/A2:2021;IEC 60601-1:2005, IEC 60601-1:2005/AMD1:2012, IEC60601-1:2005/AMD2:2020  VCCI: 2016-11, Class B (PSU/Battery with PSE)  FCC: Part 18 Class B  UL: AAMI ES60601-1:2005/(R)2012 and A1:2012/(R)2012 and A2:2021 By Project  cUL: CAN/CSA-C22.2 No. 60601-1:14 By Project  ISO 14971 / IEC62133  (All regulation with CPU i7-13700TE and Nvidia A4500 graphic MXM module)
