| CPU / Chipset | FCBGA1528 8th generation Intel® Core i7/i5 processor (15W Max.) Optional Vpro by Core i7/i5 CPU/ SoC |
|---|---|
| Graphic | Intel® integrated UHD Graphics 620 |
| RAM | Two DDR4 Dual-2400MHz RAM, non-ECC, x2 SO-DIMM socket, up to 64GB |
| OS Support | Optional Win 10 IoT Enterprise LTSC, Win 11 IoT Enterprise GAC |
| Storage | 1 x M.2 NVMe SSD (M Key 2242/2260/2280) PCIex4, 1 x 2.5" SSD/HDD w/ doggy door |
| Expansion | 1 x PCIex4 (25W Max.), 1 x M.2 Type E Optional Network Interface: 802.11 ac/a/b/g/n (or Wifi-6) WLAN + Bluetooth module |
| Display Size | 23.8" wide TFT-Color LCD (16:9) |
| Display | 1920 x 1080 (Full HD), 16.7M colors, 178(H) / 178(V), 250 nits (Typ. Center point), CR:3000 : 1 (Typ) |
| Touch Screen | Projected Capacitive Multi-Touch Panel / Light Transmission: ≧85% / Hardness: ≧7H pencil, pressure 765g/45° / Life: 50000 |
| WMP-24J IP0A (STD) | WMP-24J IP0B (ISO) | |
|---|---|---|

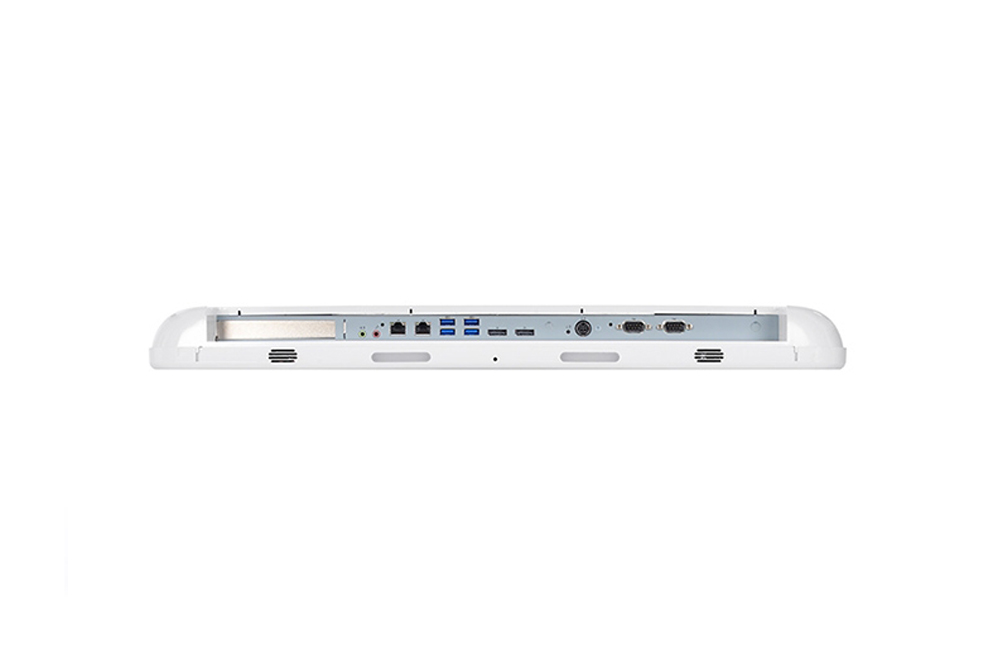

| USB | 4 x USB3.1 gen. II | 4 x USB3.1 gen. II, 1 x ISO USB2.0 |
| COM | 1 x RS232/422/485 1 x RS232 |
1 x ISO RS232/RS422/RS485 1 x ISO RS-232 |
| LAN | 2 x RJ45 | 2 x RJ45, 1x ISO RJ45 |
| Audio | 2 x 3.5mm phone jack connector (Line-out, Mic-In) | |
| Video Out | 2 x DP & 1 x HDMI video-in | |
| Reading Light | Light bar x 2 (at housing bottom side) | |
| Control Hot Key (R to L) | Battery LED Indicator, Power On/Off, Volume +/-, Brightness +/-, Reading Light, LCD Backlight On/Off, Clean Me, Function Key | |
| Cooling | Fanless |
|---|---|
| Battery Pack | Optional 3 x DR-202 Series, Lithium-ion Battery w/ Hot-Swappable Design |
| Power Input | DC-In x 1, DC 14~24V input |
| Power Adapter | AC input 100~240V / 47 ~ 63 Hz / DC output 24V, 180W |
| Temperature | Operating Temperature: 0~40℃ (Burn-in, not airtight, W/ Battery 0~35℃) / Storage Temperature: -20~60℃ |
| Humidity | Operating & Storage:10 ~ 90%, non-condensing |

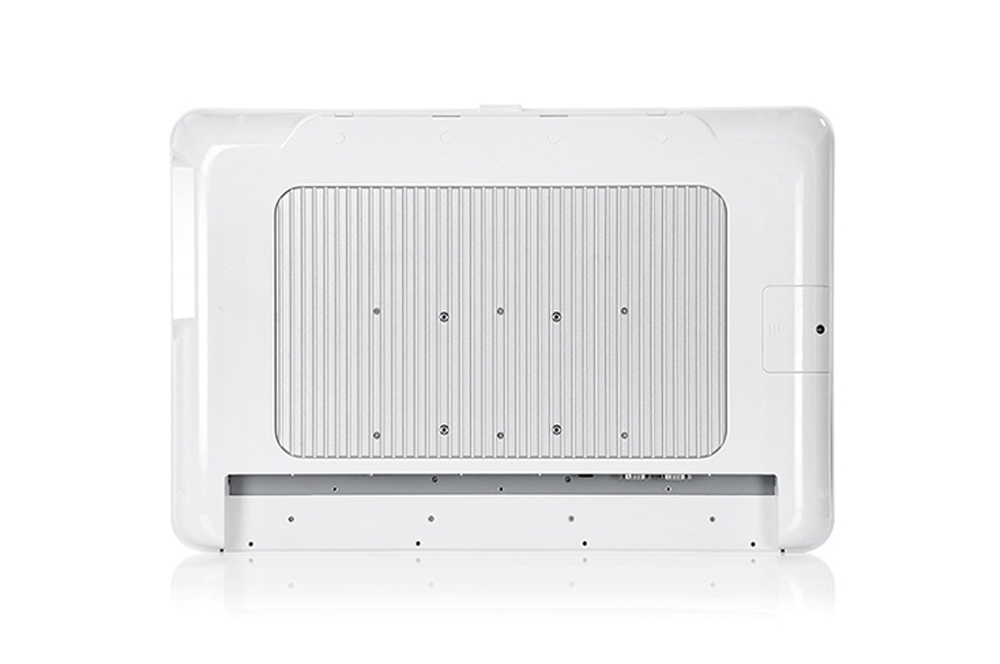

| IP Rating / Housing | IP65 (Front Side),IPX1 for whole system / Front: Full flat design/ Touch (standard)/ Glass( customized); Rear: Plastic White w/Anti-bacteria (MRSA), Housing |
| Dimensions (Net) | 594 x 397 x 56 mm |
| Weights (Net) | 9.0 kg (w/o power adapter/battery pack) |
| Mounting | Optional Stand, VESA 100 |
| Certification | CE: EN 60601-1-2:2015(V4.0) EN 60601-1:2006 + A11: 2011 + A1: 2013 + A12: 2014 Compliance VCCI: 2016-11, Class B (PSU/Battery with PSE) FCC: Part 18 Class B UL: ANSI/AAMI ES60601-1:2012 (V3.1) cUL: CAN/CSA-C22.2 No. 60601-1:2014 (V3.1) ISO 14971 / IEC62133 |
