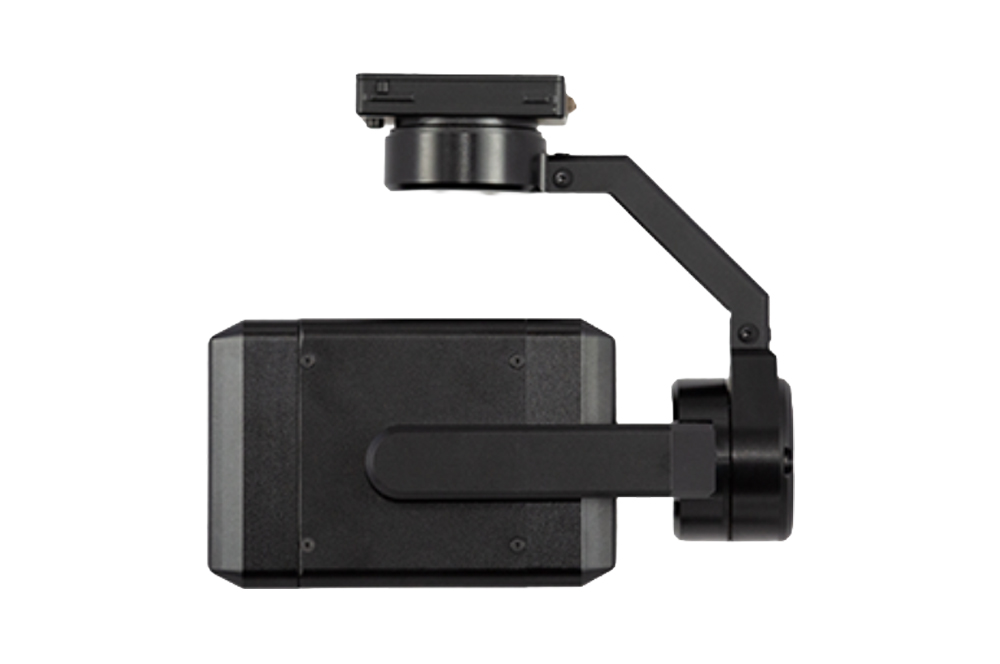

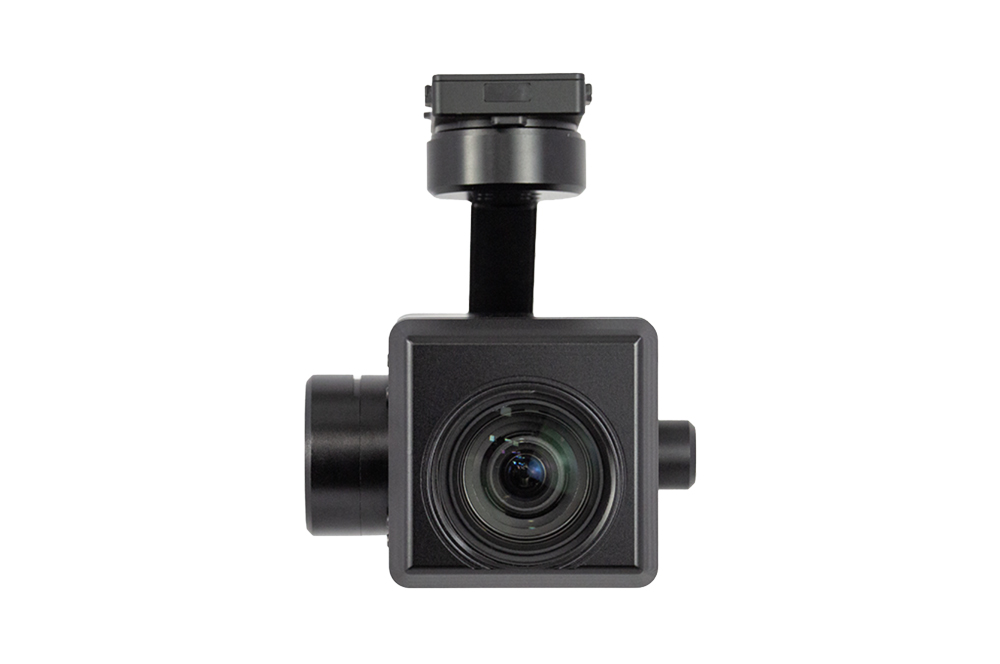

Drone / UAV Edge AI

General

Input Voltage	12 - 50V
Power	8.4W
Weight	630g
Dimension	160 * 110 *140 mm
Operating Temp.	-10°C ~ 65°C
Storage Temp.	-20°C ~ 70°C
Memory Card	Micro SD Card
Interface	RJ45 Ethernet (IP) / TTL/POWER
Water Resistance Rating	IP55

Gimbal

Angle Vibration	±0.008°
Control Range	Pitch: +45° to -90°, Yaw: 360°
Structure Range	Pitch: +55° to 235°, Yaw: 360°
Control Speed	Pitch: 120°/s, Yaw: 180°/s

EO

CMOS	1/2.8" Sony Starvis CMOS Sensor
Pixel	8M pixels
Optical Zoom	30x" (for magnification or zoom) F=4.8mm ~ 144 mm
F-number	F1.5 ~ F3.4
FOV	3.07°~57.05° (Horizontal) ; 1.6°~34.04° (Vertical)
Resolution	3840x2160 @ 30fps, 2592x1520 @ 30fps, 1920x1080 @ 30fps, 1280x720 @ 30fps, 640x480 @ 30fps
DRI（M）(1.8m*0.5m)	D:17010  R:4250  I:2130
Vid	H.264+ / H.264 / M-JPEG
