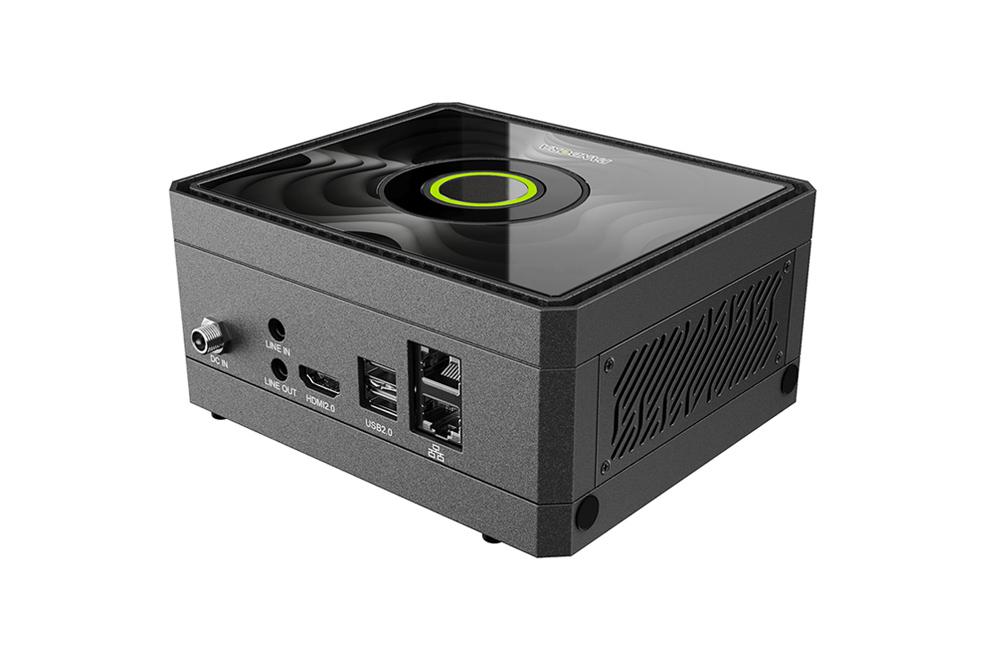

Pandora Compact Edge

System

CPU	NVIDIA® Jetson Orin™ NX Super 16GB 8-Core Arm® Cortex®-A78AE v8.2 64-Bit CPU 2MB L2 + 4MB L3
GPU	1024-Core NVIDIA Ampere Architecture GPU with 32 Tensor Cores
API Performance	157 TOPS
System Memory	16GB 128-bit LPDDR5 102.4GB/s

Interface

Storage	Supports External NVMe
Display Interface	1xHDMI2.0
Ethernet	2xRJ45 for 10/100/1000Mbps Ethernet DHCP Client
Expansion Slot	1×M.2 2280 M Key PCIe Gen4×2 Slot ( with Pre-Installed 128GB SSD ) 1×M.2 2280/3080 M Key PCIe Gen4×4 Slot, Support SSD or Video Capture Cards 1×M.2 2230 E Key PCIe Gen4×1+USB2.0 Slot, Support WiFi Module. 1×M.2 3042/3052 B Key USB3.2 Gen1 Slot, Support 5G/4G Wireless Module
USB	2×USB3.2 Gen2 (Type-A) 1×USB3.2 Gen2 (Type-C) (OTG) 2×USB2.0 (Type-A)
MIPI	8-Lane MIPI CSI-2 (D-PHY 2.1, Support MIPI Camera, Capture Card)
Audio	1×Line In (3.5mm Phone Jack) 1×Line Out (3.5mm Phone Jack)
Perherial Communication	40 Pin Header 1×I2S 2×I2C 2×SPI 1×UART 3×GPIO 14 Pin Header 1×CAN Bus 1×UART with CTS/RTS 1×UART for Debug 1×Nano SIM Card Slot
Misc. Features	Firmware Upgradable TPM Module (Optional)

Video Feature

Video Encode	AV1 ( UHP ) 1×4K60 | 3×4K30 | 6×1080p60 | 12×1080p30 H.265 ( UHP ) 1×4K60 | 3×4K30 | 6×1080p60 | 12×1080p30 H.264 ( UHP ) 1×4K60 | 2×4K30 | 5×1080p60 | 11×1080p30
Video Decode	AV1 ( Main Profile ) 1×8K30 | 2×4K60 | 4×4K30 | 10×1080p60 | 20×1080p30 H.265 ( Main, Main10 ) 1×8K30 | 2×4K60 | 4×4K30 | 9×1080p60 | 18×1080p30 H.264 ( Baseline, Main, High ) 1×4K60 | 2×4K30 | 5×1080p60 | 11×1080p30 VP9 ( Profile 0, Profile 2 ) 1×4K60 | 3×4K30 | 7×1080p60 | 15×1080p30

Development Environment

JetPack	6.2 or Higher

Environment

Power Supply	DC input : 12~36V
Power Consumption	Max : 49.2W
Operatinbg Temp.	Standard Version : 0~60°C with Airflow
Storage Temp.	-20~80°C
