PCIe-Expandable Medical HMI

Display

LCD Size	21.5"
LCD Resolution	1920x1080
LCD Brightness (cd/m²)	350
LCD Contrast Ratio	1000:1
LCD Color	16.7M (RGB 8-bit)
LCD Pixel Pitch (mm)	0.2745 (H) x 0.2745 (V)
LCD Viewing Angle (H-V)	178°/178°
LCD Backlight MTBF	50000
Touch Screen	PCAP
Touch Controller	EETI
Touch Surface Hardness	6H
Touchscreen Coating	Chemical etching AG

System

CPU	13th Gen Intel® Core™ i5-1340PE/ i7-1370PE (Raptor Lake-P)
Supported OS	Windows 11; Linux Ubuntu

Network

Ethernet Controller	Intel® I226-V
Wi-Fi	IEEE 802.11 a/b/g/n/ac/ax, Intel® Wi-Fi 6E AX210
Buletooth	Bluetooth V5.2

Storage

Storage	2 x M.2 2280 M key (PCIe/ SATA) with RAID
RAM	2 x 262-pin 4800MT/s dual-channel DDR5 SO-DIMM slots (system max. 64GB)

Expansion Slots

Type	1 x PCIe x2 1 x M.2 2230 A-E key (PCIe+USB) 2 x M.2 2260/80 B-M key (PCIe/ SATA)

Audio

Speaker	2 x 2W speaker
Microphone	1 x Digital mic

I/O Interface

Side I/O	2 x USB 2.0 port

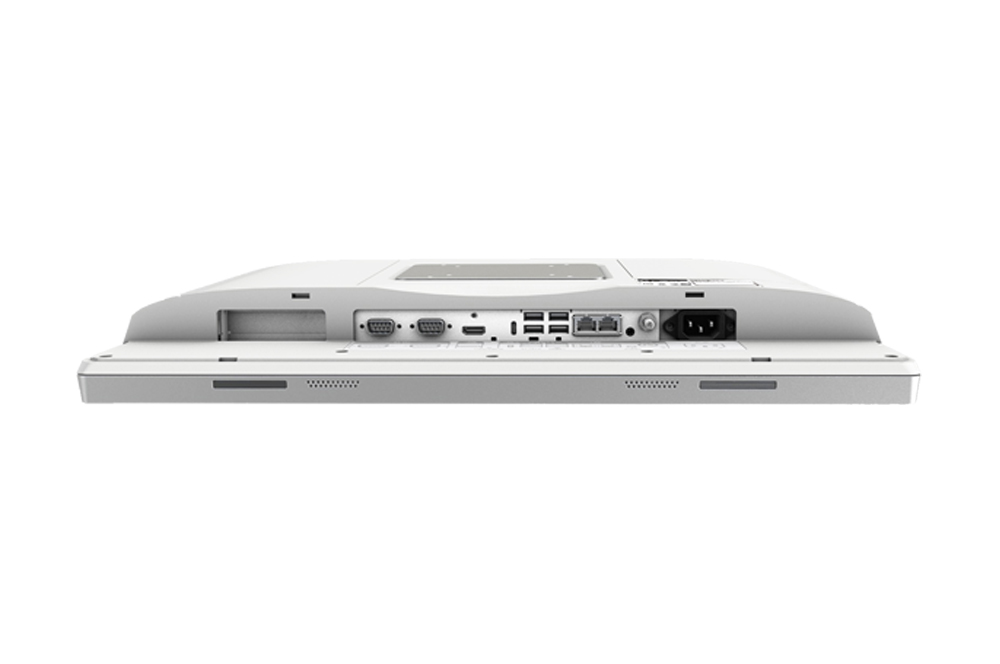

Rear I/O	1 x AC jack 1 x HDMI output 1 x USB Type-C (DP + USB 5V/3A) 1 x Combo audio-out/mic-in 2 x RS-232 2 x 2.5GbE LAN port 4 x USB 3.2 Gen 2 (10Gb/s) port

Indicator & Buttons

Buttons	1 x Power on/off 1 x AT/ATX switch 1 x Reset button 1 x Clear CMOS Button
Indicators	1 x Power indicator

Other Features

OSD Function	1 x Power on/off 1 x Reading light on/off 1 x Brightness up 1 x Brightness down 1 x LCD & touch lock on/off 1 x DICOM mode app on/off (optional)

Physical Characteristics

Thermal	Fanless
Construction Material	ABS+PC plastic
Mounting	Wall, Stand and Arm; VESA 75/100 compliant
Weight (Net) (kg)	6.9 kg
Dimensions (LxWxH) (mm)	507.5 x 335.5 x 64.5

Power

Input	85V – 264V AC input
Built-in Power Supply	150W, 85V – 264V AC, medical power supply

Environment

Operating Temperature	0°C ~ 40°C
Storage Temp.	-20°C ~ 60°C
Humidity	10% ~ 90% (non-condensing)
Vibration	1G
Operating Shock	5G peak acceleration (11ms duration)
Non-operating shock	15G peak acceleration (11ms duration)
IP Level	Front : IP66

Certifications

Safety & EMC	CE, FCC Class B Part18, UL 60601-1, IEC/EN 60601-1, IEC/EN 60601-1-2

Ordering Information

MH22-i7/PC-R10	21.5" 350cd/m² FHD medical panel PC with 13th generation 10nm Intel®Raptor Lake-P Core™ i7-1370PE 4.8GHz on-board processor,802.11a/b/g/n/ac/ax Wi-Fi 6E module,PCAP touchscreen w/ AG coating,R10
MH22-i7/PC/DI-R10	21.5" 350cd/m² FHD medical panel PC with 13th generation 10nm Intel®Raptor Lake-P Core™ i7-1370PE 4.8GHz on-board processor,802.11a/b/g/n/ac/ax Wi-Fi 6E module,PCAP touchscreen w/ AG coating,DICOM,R10
MH22-i5/PC-R10	21.5" 350cd/m² FHD medical panel PC with 13th generation 10nm Intel®Raptor Lake-P Core™ i5-1340PE 4.5GHz on-board processor,802.11a/b/g/n/ac/ax Wi-Fi 6E module,PCAP touchscreen w/ AG coating,R10
