EYE6N0-S678

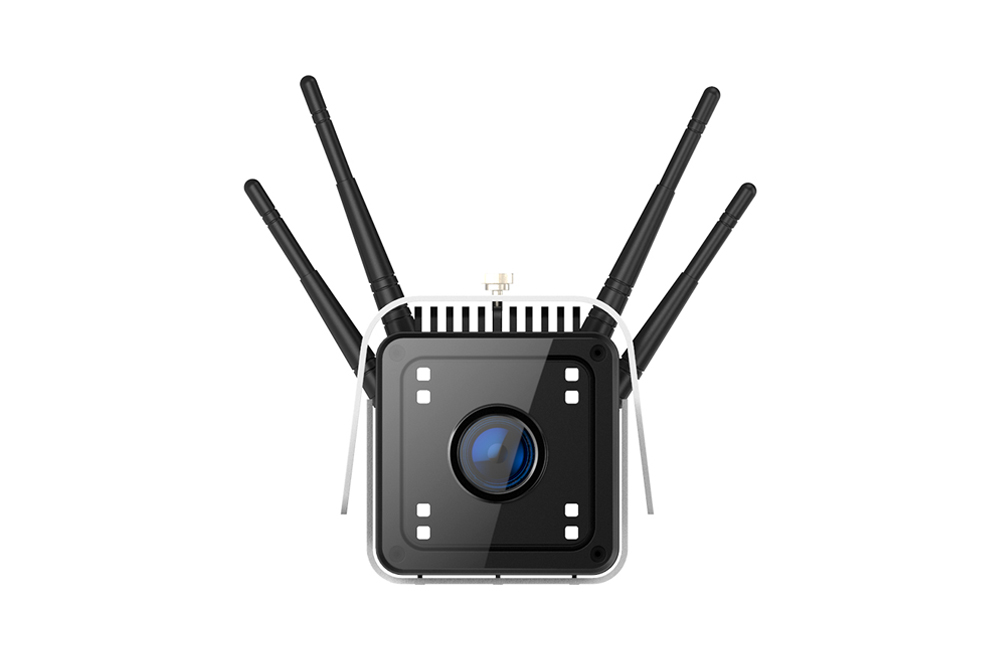

AI video Smart City Camera
  • 4K60 HDR/WDR AI camera accelerated by NVIDIA® Jetson Orin™ NX Super
  • Up to 157 TOPS AI with multiple models including Generative AI
  • Hardware ISP design without CPU/GPU Loading
  • Lens support auto-focus and auto-IRIS
  • DMA PCIe design high-bandwidth capture, providing RGB444 image quality
  • IP66 waterproof rating withstand outdoor tolerance within temperature from -20~50 °C

System

CPU NVIDIA Jetson Orin NX 8GB Super
6-Core Arm® Cortex®-A78AE v8.2 64-Bit CPU
1.5MB L2 + 4MB L3
NVIDIA Jetson Orin NX 16GB Super
8-Core Arm® Cortex®-A78AE v8.2 64-Bit CPU
2MB L2 + 4MB L3
GPU 1024-Core NVIDIA Ampere Architecture GPU with 32 Tensor Cores
API Performance NVIDIA Jetson Orin™ NX 8GB Super, 117 TOPS
NVIDIA Jetson Orin™ NX 16GB Super, 157 TOPS
System Memory NVIDIA Jetson Orin™ NX 8GB Super, 8GB LPDDR5
NVIDIA Jetson Orin™ NX 16GB Super, 16GB LPDDR5

Interface

Storage Supports External NVMe
Display Interface 1xHDMI2.0
Ethernet 1×RJ45 for 10/100/1000Mbps Ethernet
DHCP Client
Wireless 4G/5G/Wi-Fi 6 (Optional)
Expansion Slot M.2
1×M.2 2280/3080 M Key PCIe Gen4×4 Slot
1×M.2 2230 M Key PCIe Gen4×2 Slot
1×M.2 2230 E Key PCIe Gen4×1 Slot
USB 1×USB3.2 Gen2 (Type-C)

Interface

Development JetPack : 6.2 or Higher
Power Supply DC Input : 12~24V
Power Consumption 60W
Operating Temp. -20~50°C

Mechanical

Dimension 124.54mm(W)x115.50mm(H)x305.06mm(D)
Weight 3.1kg
